Trailer Electric Drum Brake Controller - Trailer Mounted
Hayes

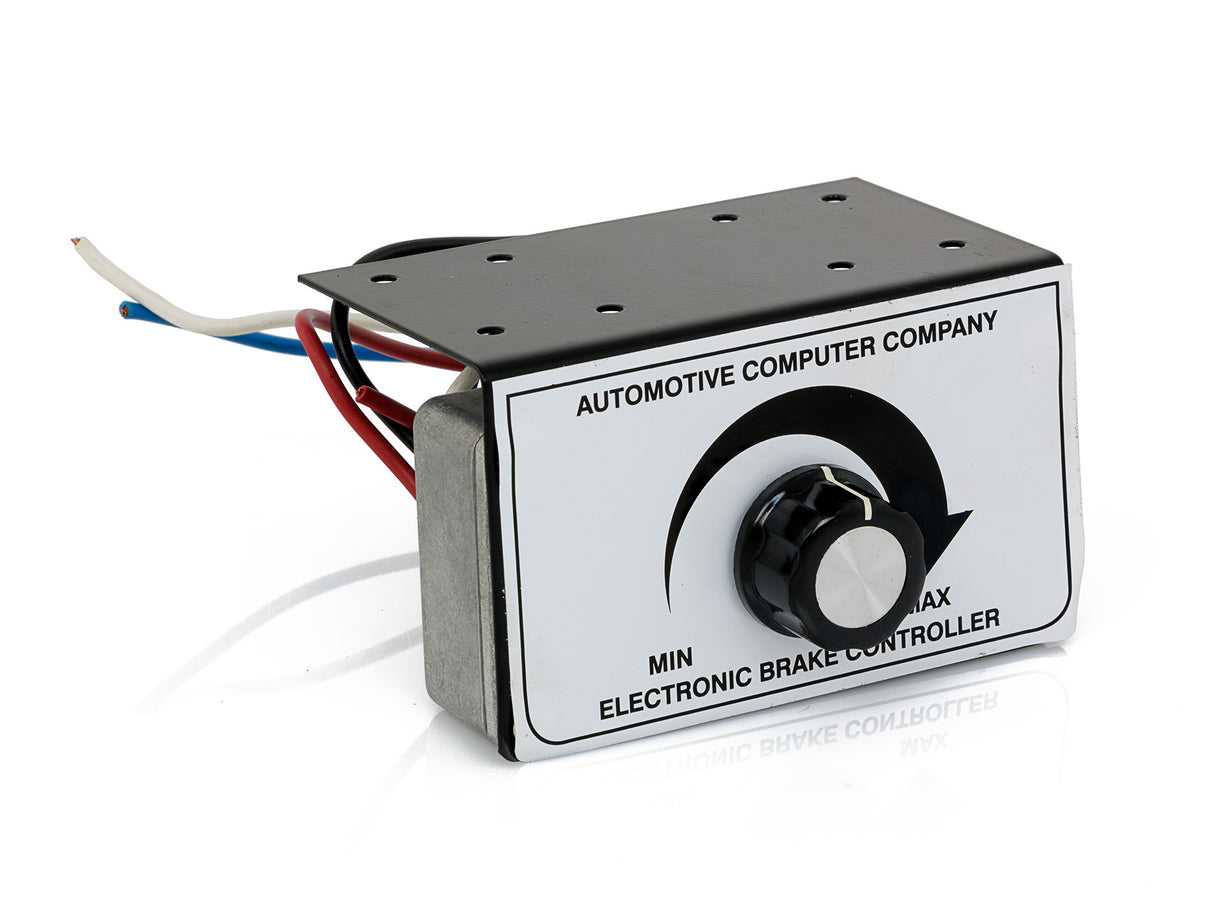

Trailer mounted electric drum brake controller to allow you to adjust the brake pressure of your electric drum brakes relative to the trailer's load.
Easy 4 Wire Installation (no instructions included), connects to battery and brake lights, when the brakes are applied the controller allows a predetermined voltage to run to the electric brake system.
Simply adjust the increase voltage for increased brake pressure when towing loaded trailer, reduce when trailer is empty.
Mounts to trailer so no need for each towing vehicle to have it's own brake controller for each trailer it may tow.
Suitable for Trailers less than 2500kg.
FEATURES:
Trailer Mountable
Min - Max Control Knob for Easy Adjusting
Red Wire: Connect to Brake Lamp Active
Black Wire: 12V Power (20A fuse recommended)
White Wire: Connect to Brake Lamp - Negative
Blue Wire: Connect to Brakes - Positive
BASIC DIMENSIONS:
Overall: 102mm wide x 62mm high x 63mm deep
BRAND NEW PRODUCT
12Month Return to Base Warranty
Please Note: Deliveries are within North & South Islands only.
Please enquire for shipping costs to outlying Islands such as Waiheke or Chatham.
