Tipping Trailer 10ft x 5ft Fully Welded Braked Tipper Trailers - Tandem Axle *PRE-ORDER*

Save BIG @ Save Barn | Trailers & Trailer Parts | Tipping Trailers

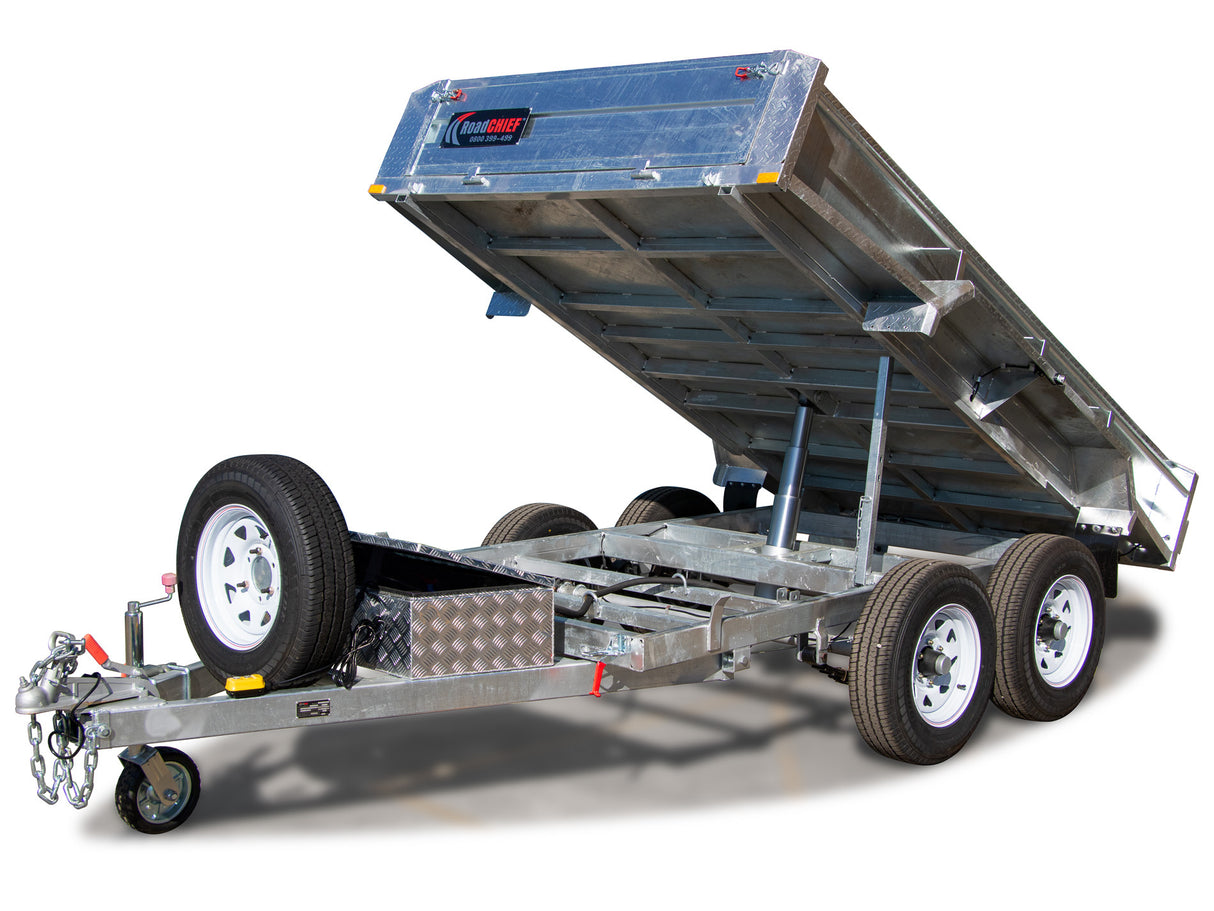

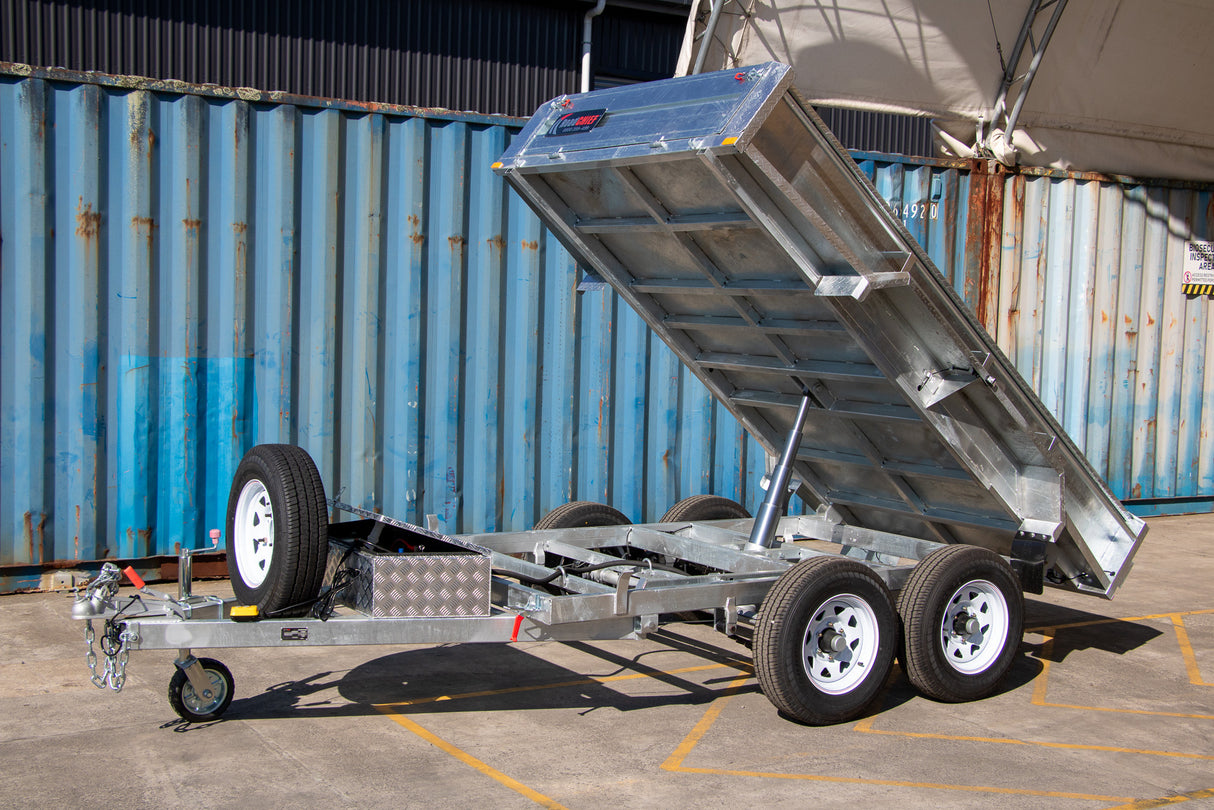

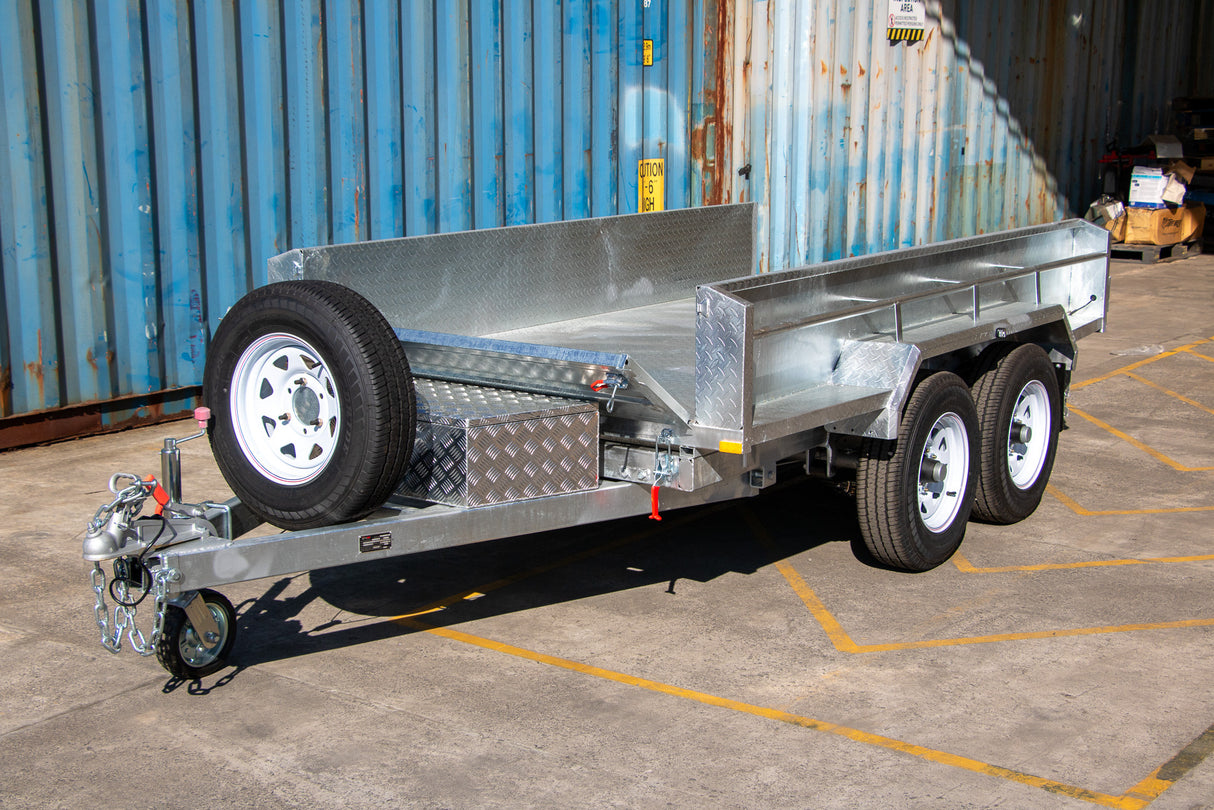

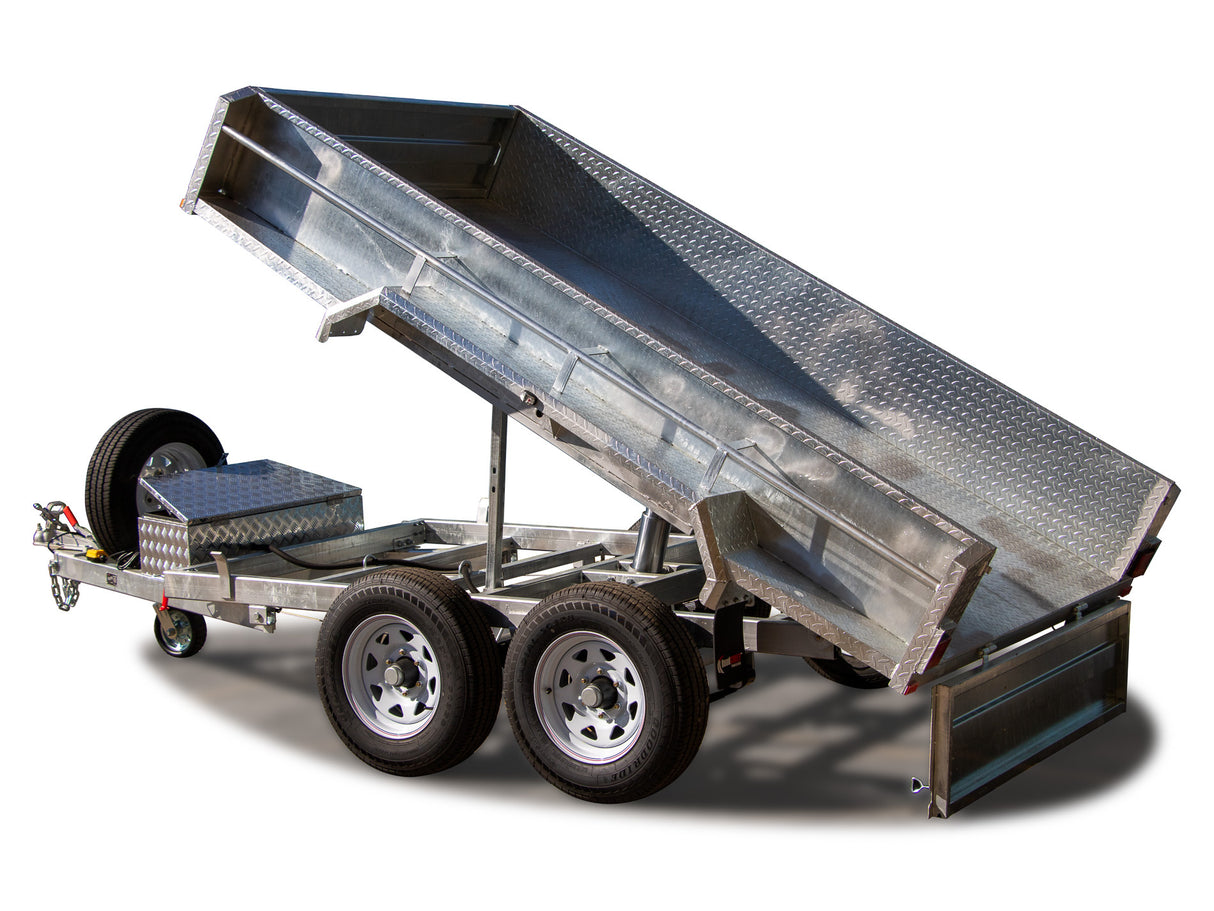

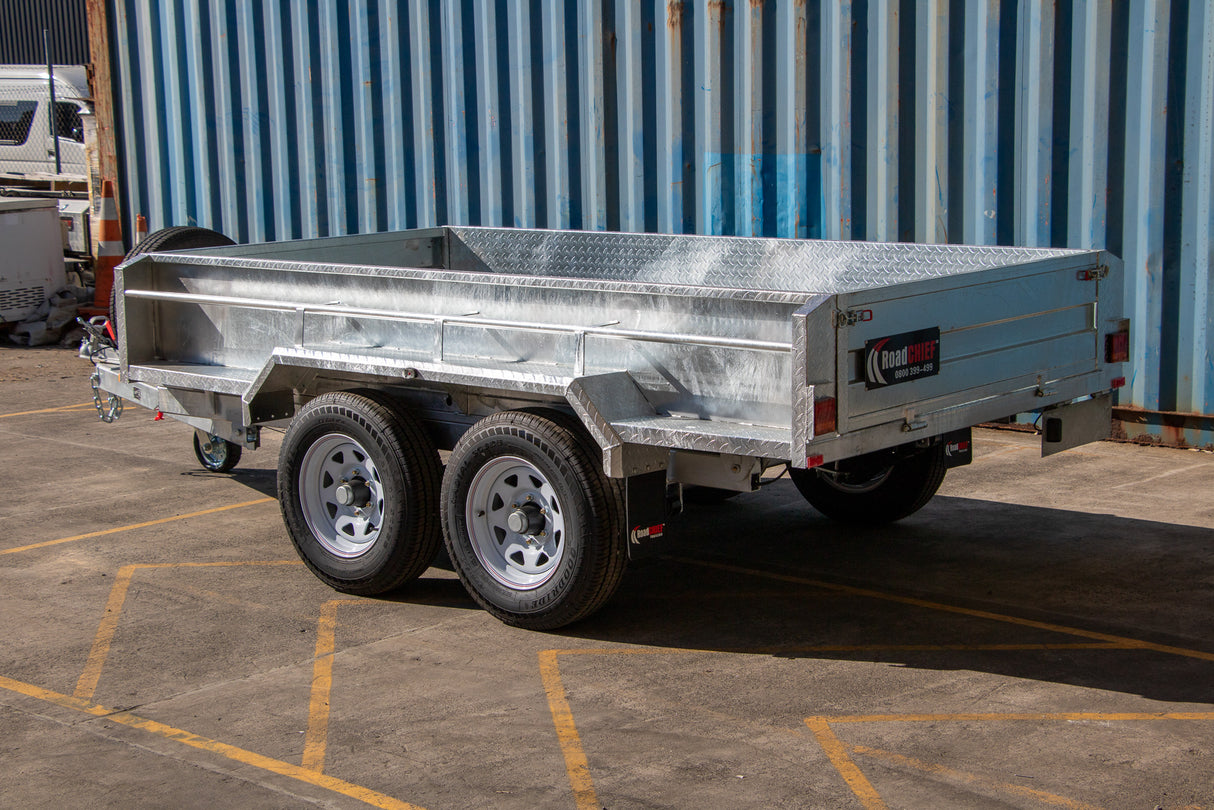

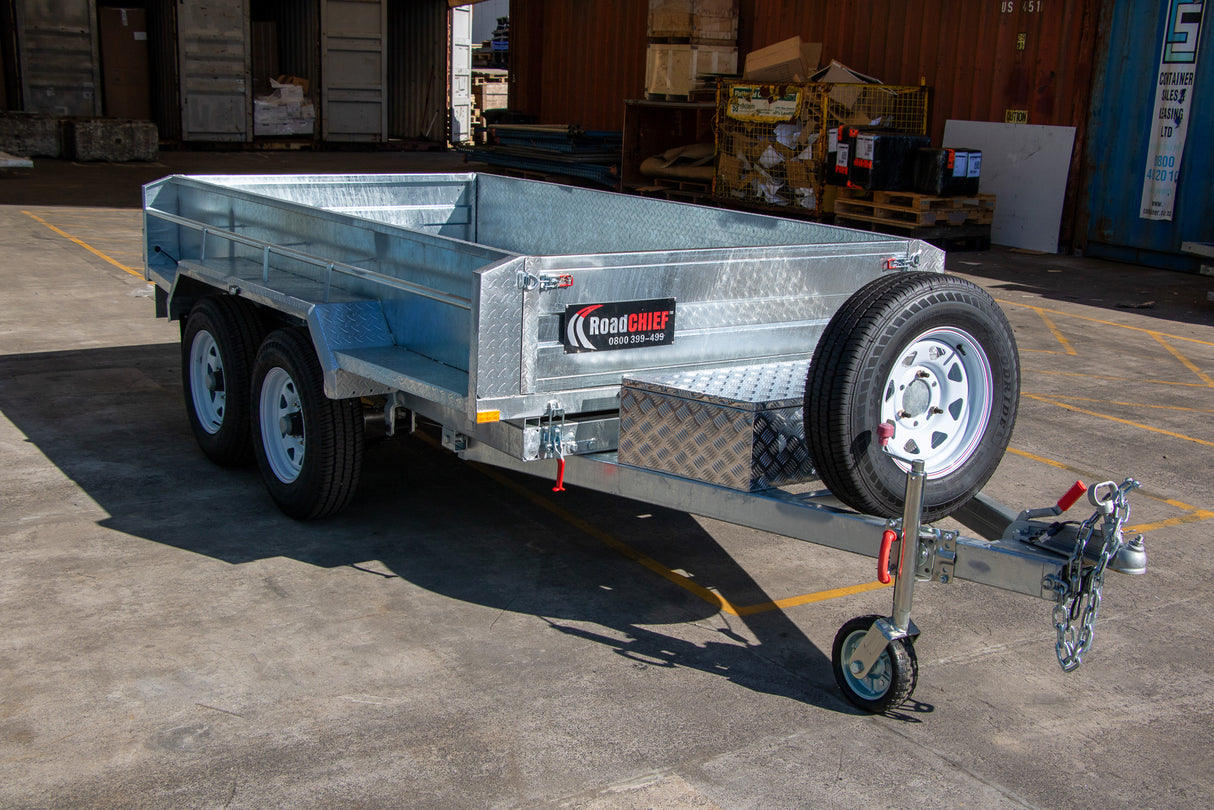

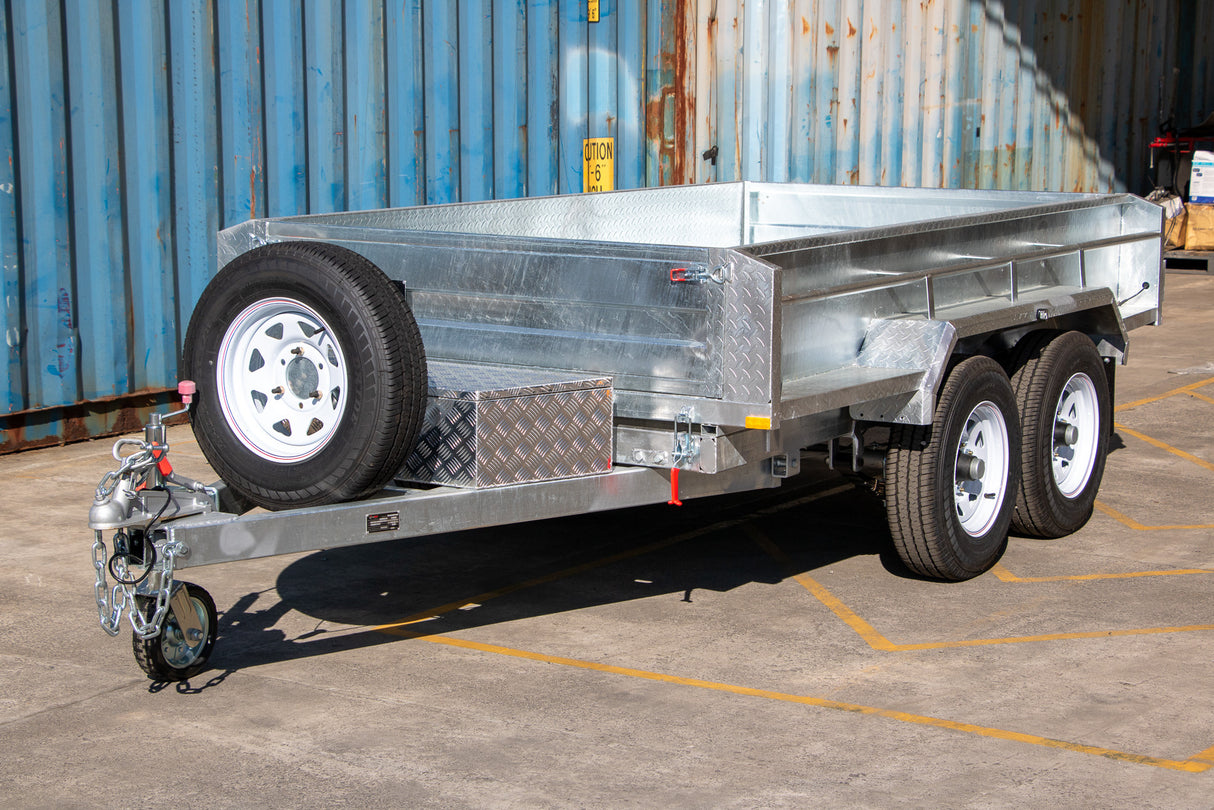

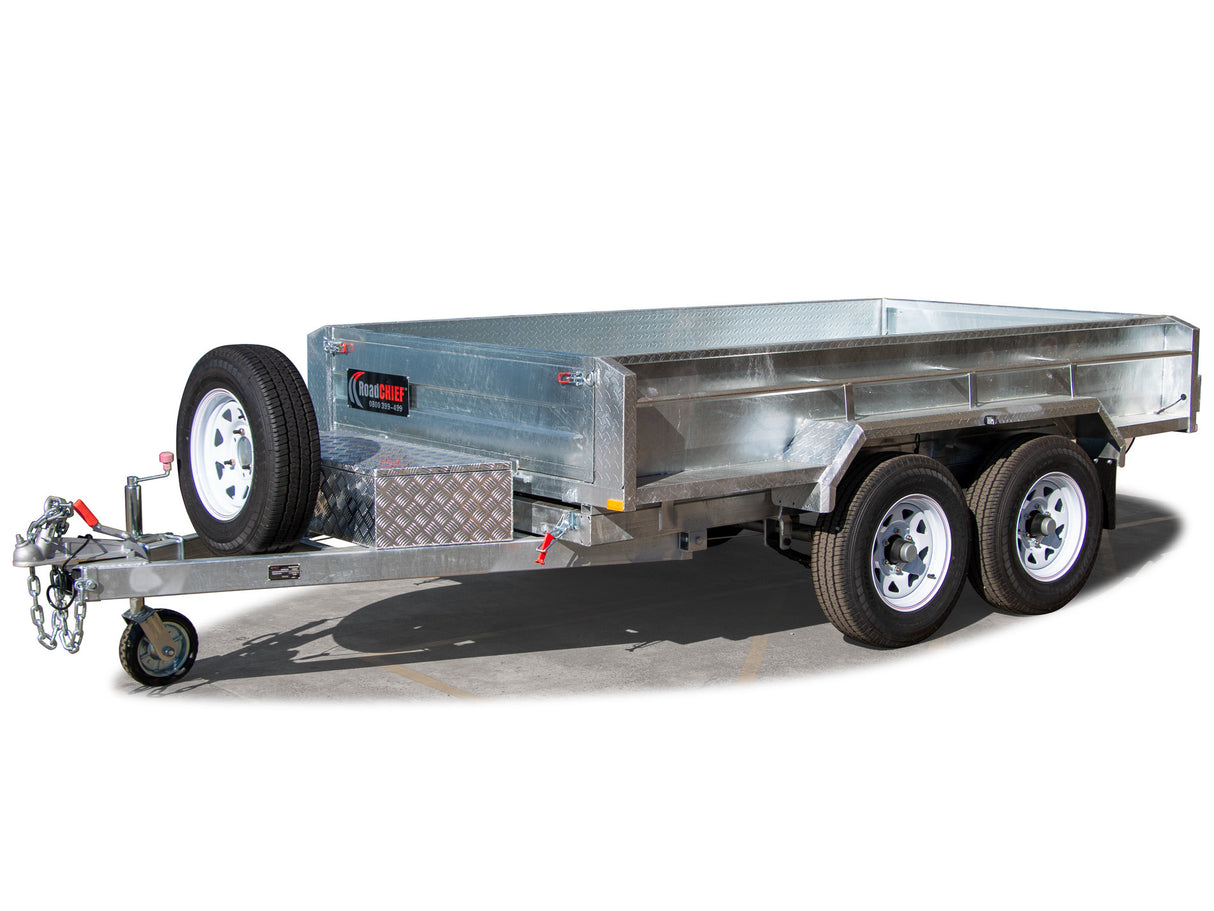

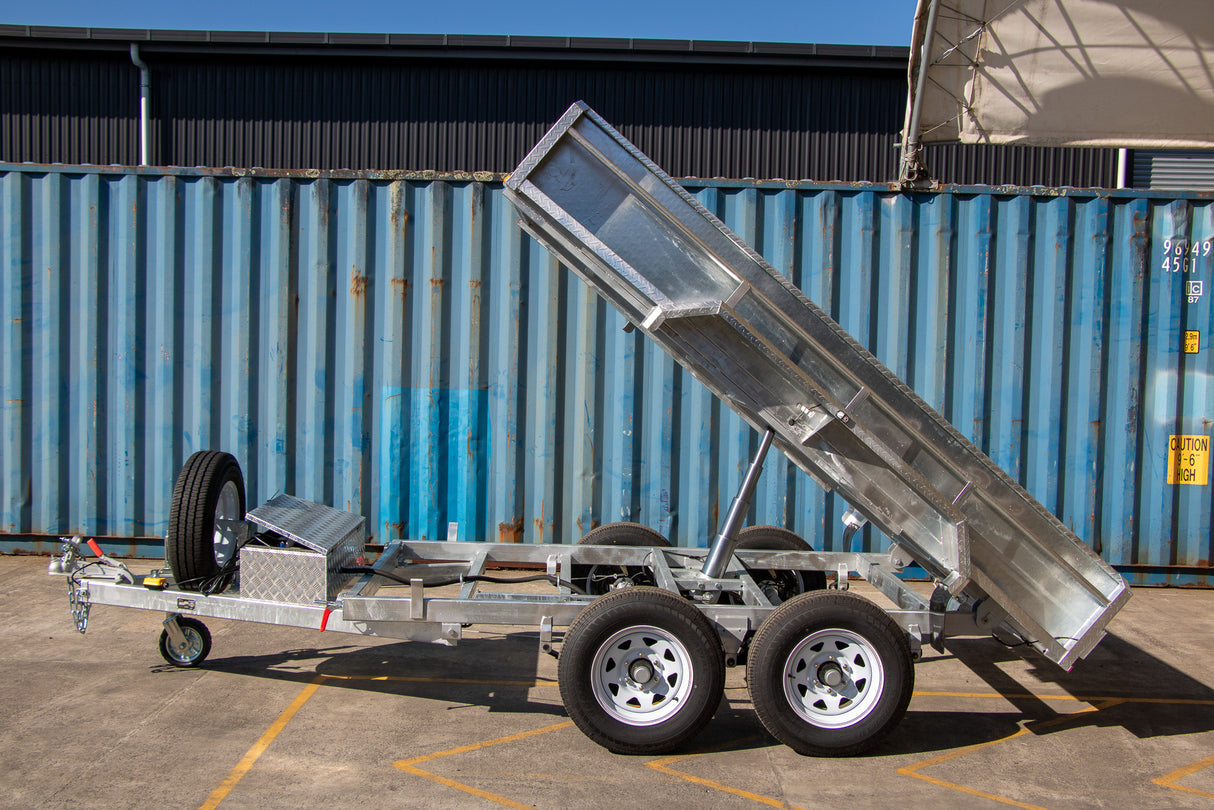

Trailer 10ft x 5ft Fully Welded Hydraulic Tipping Trailer - Tandem Axle
ROADCHIEF

LOAD CAPACITY: 2630kg
GTM: 3500kg

FULLY ASSEMBLED - Pickup from Save Barn Otahuhu.

***PRE-ORDER - STOCK DUE LATE-SEPTEMBER 2026

>>> Optional 900mm High Cage Available (not included), please enquire.


FEATURES:
10ft x 5ft (3000mm x 1530mm) Fully Welded Tipping Trailer
Hot Dipped Galvanised (Rust Free)
2.5mm Thickness Galvanised Checker Plate Deck

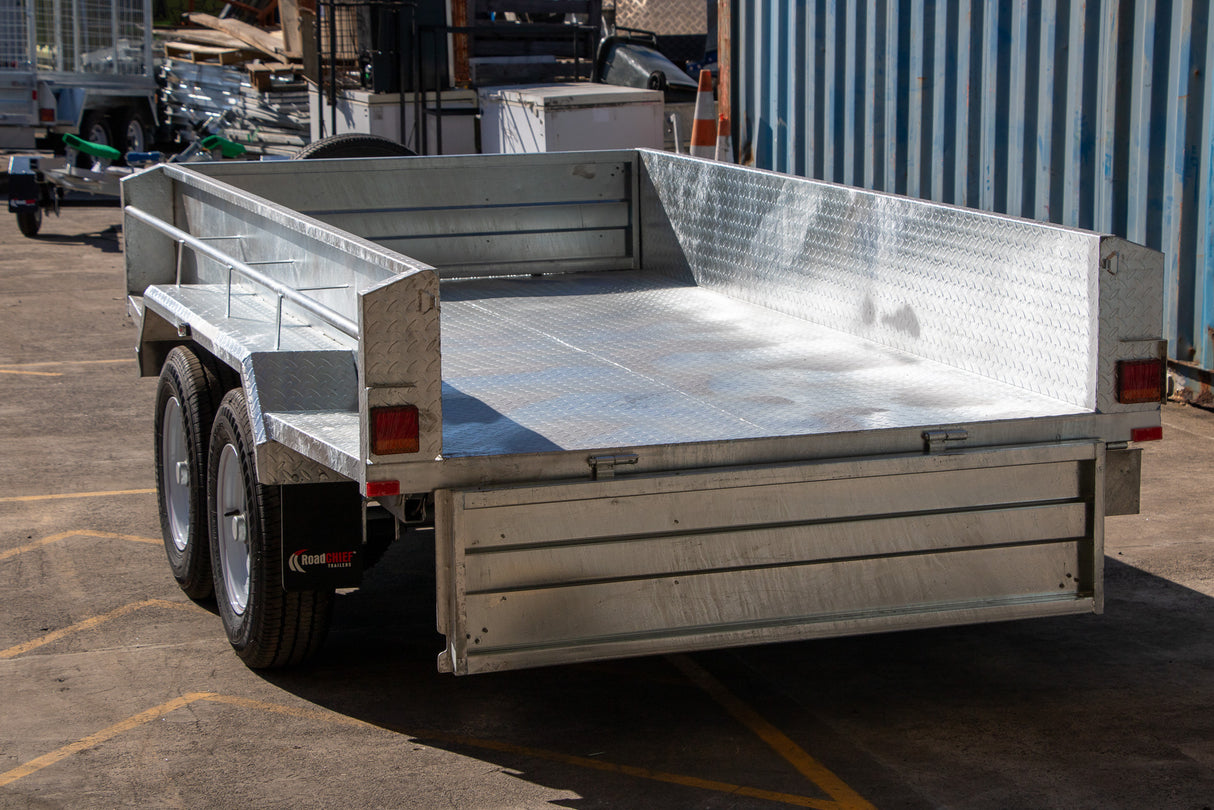

Front & Rear Drop Down Gates
400mm High Sides

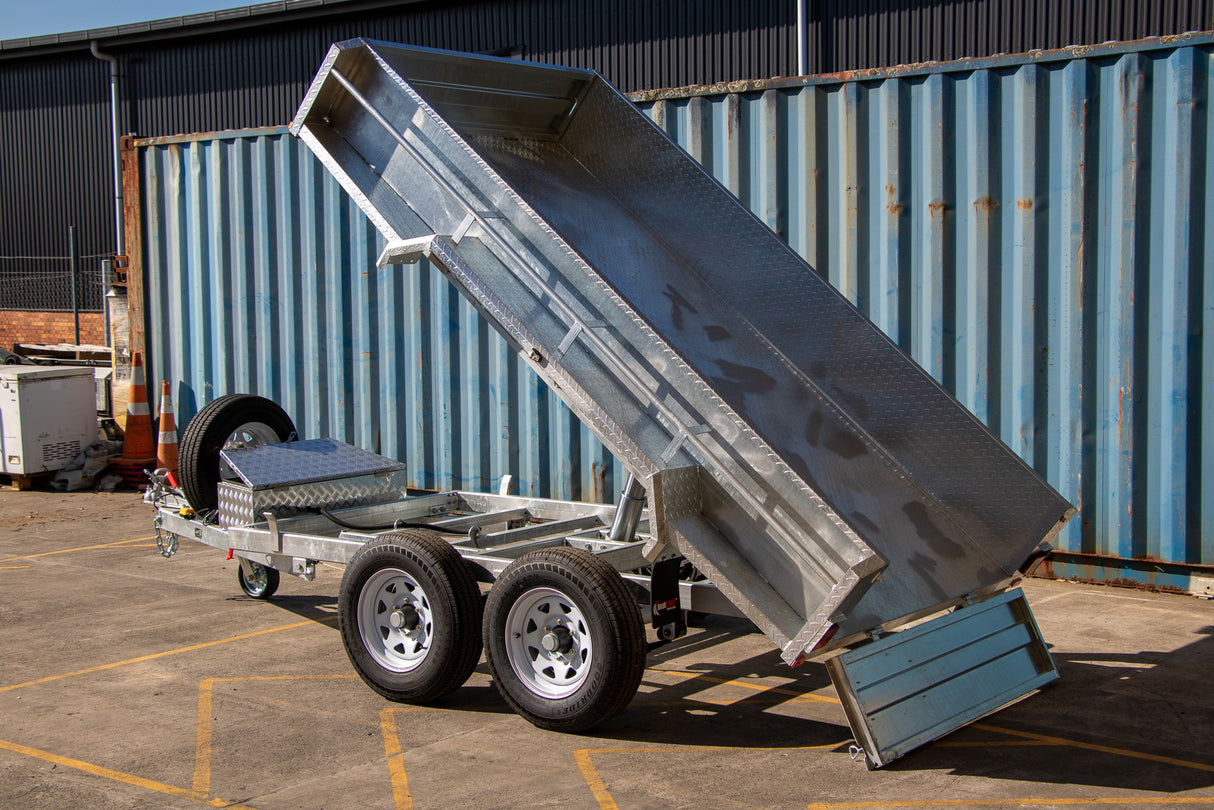

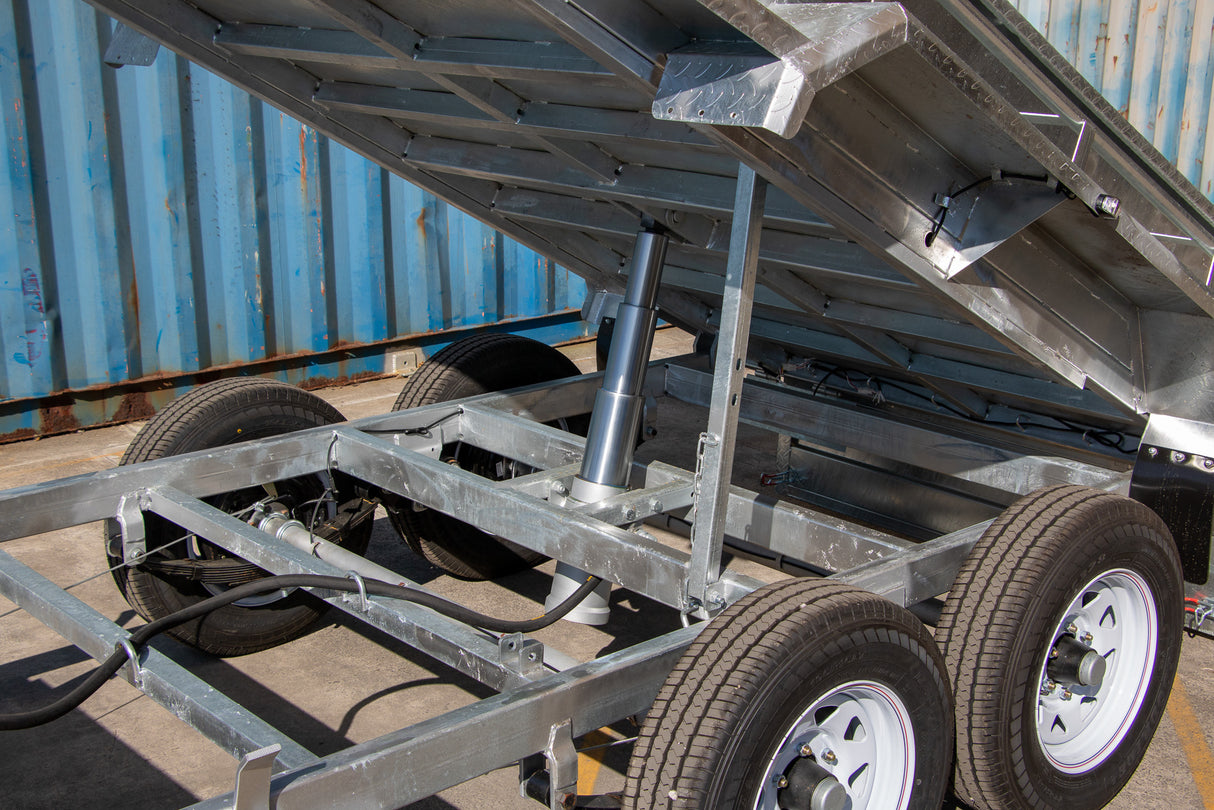

Hydraulic Ram System (4 Stage)

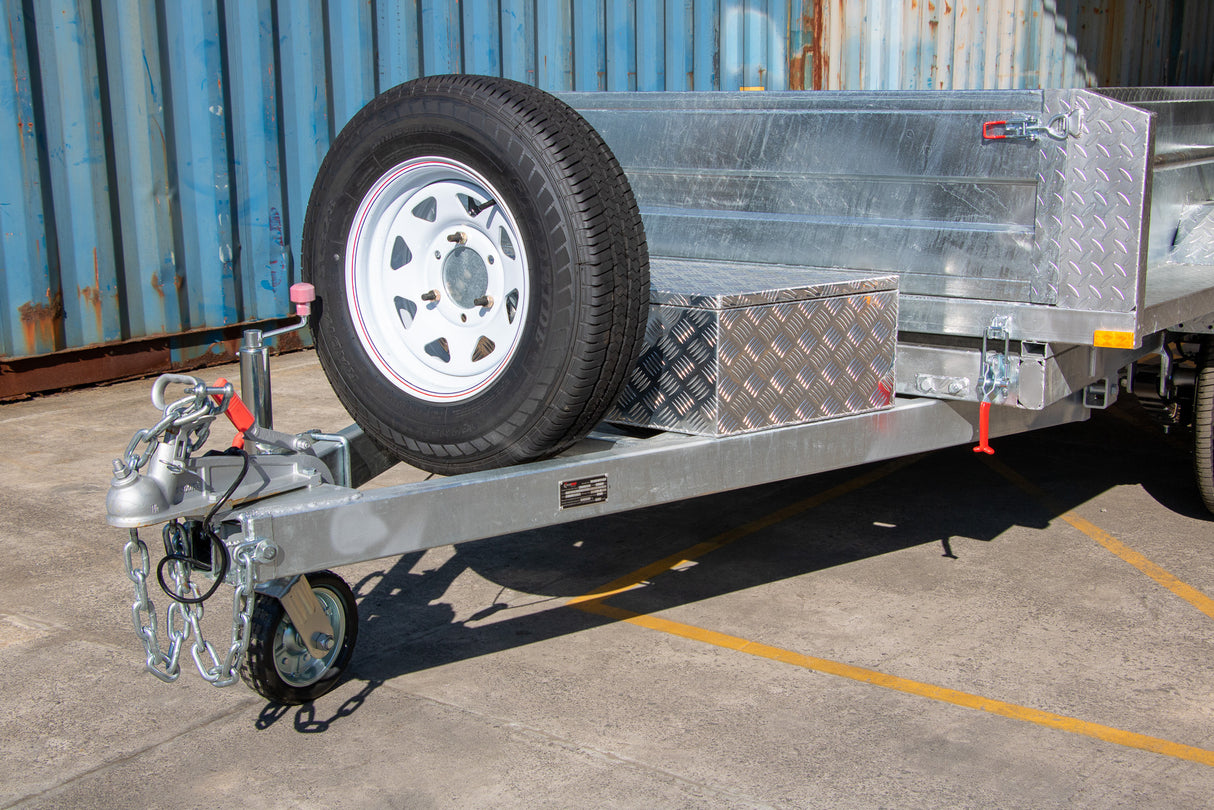

- Housed in Frame Mounted Toolbox (lockable)

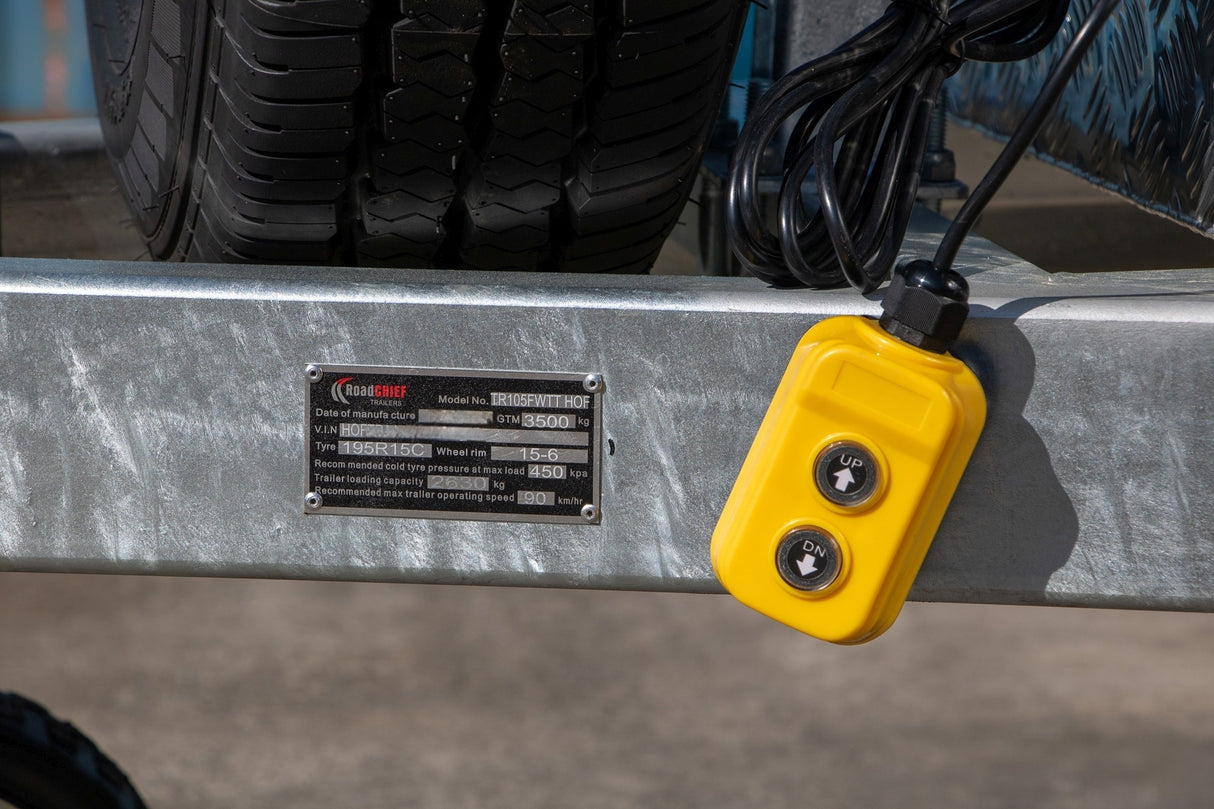

- Remote Control with Magnetic Back & 3.5m Long Cable
- 12V Battery Powered (not included)

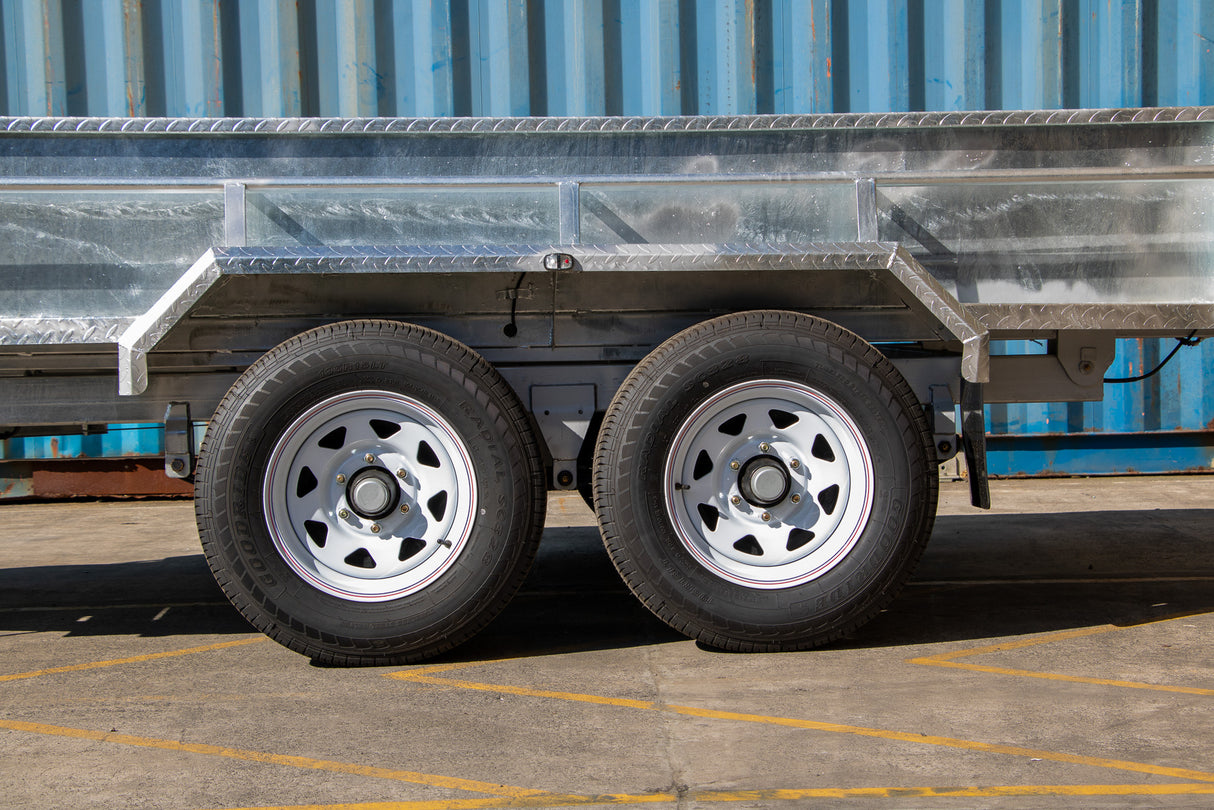

2x 60mm Round Solid Axle With Two 12 Inch Electric Brakes (Requires Brake Controller, not included)
4x 9-Leaf Rocker Roller Springs (Heavy Duty Suspension)
4x New 15" Rims with 195R15LT Tyres (6 Stud) + 1x Spare Wheel
3x Additional Support Beams & Crossmembers in the A Frame
LED Tail Lights
1-7/8 Coupler
- 3500kg Rated
Free Swing up 10" Jockey Wheel
Flat 7 Pin Plug
Heavy Duty Chain & Load Rated Shackle


BASIC DIMENSIONS:

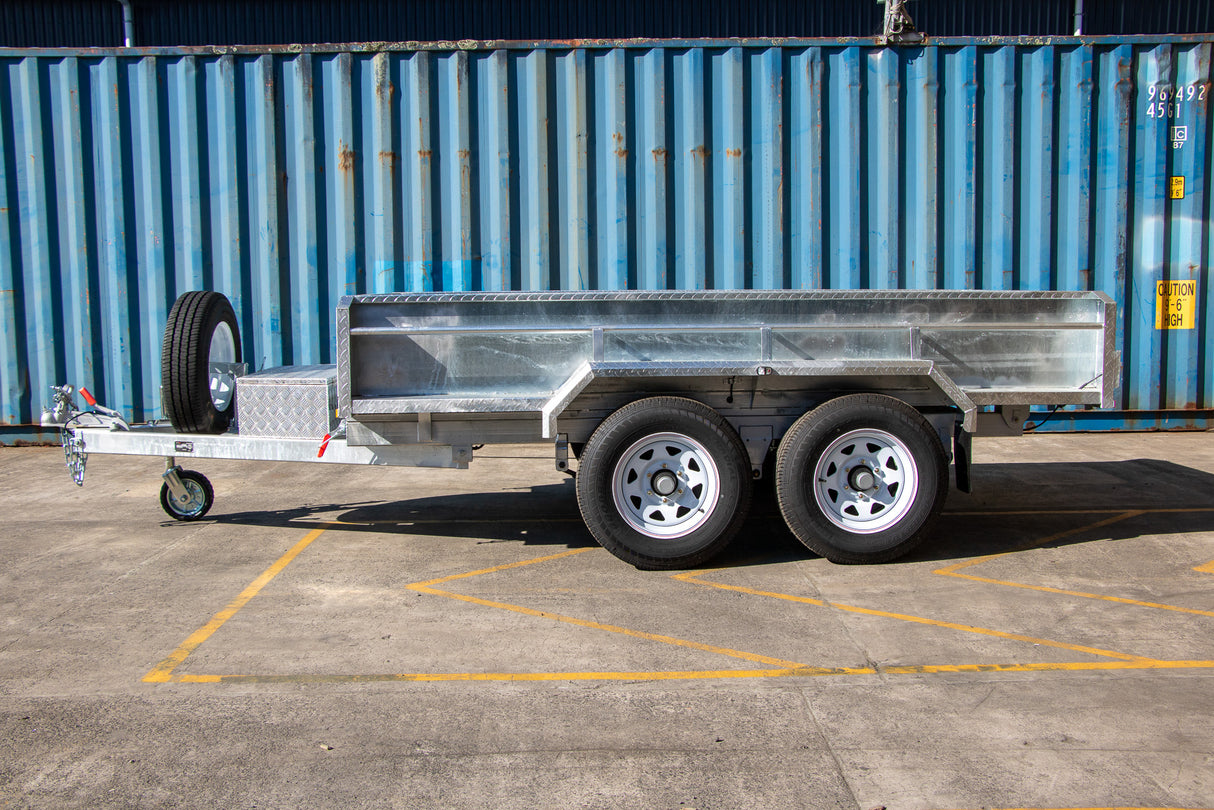

Overall: 4600mm long x 1870mm wide x 1100mm high
Deck: 3000mm long x 1530mm wide x 400mm high sides

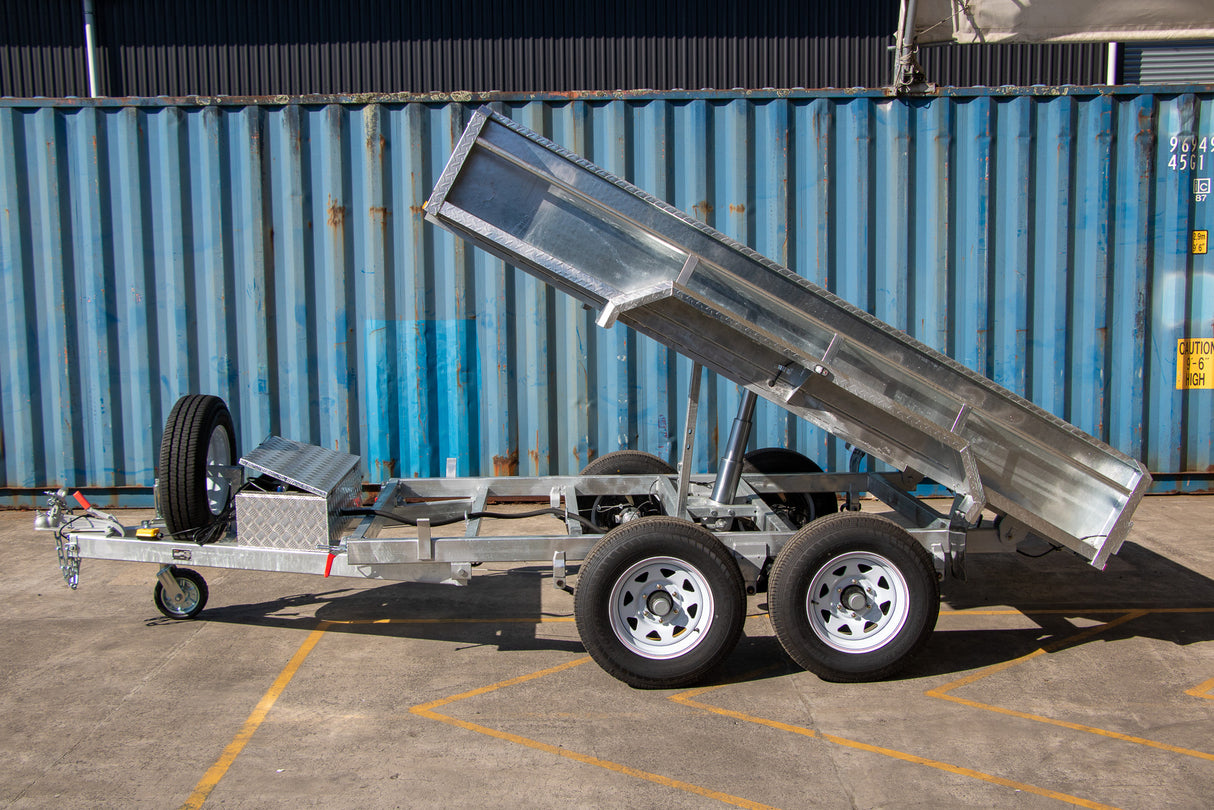

Deck Raised: 2700mm high fully extended / 2350mm high on stay
Draw Bar: 1500mm long (100mm x 50mm box steel)
Toolbox (for hydraulic system): 1030mm wide x 420mm deep x 260mm high

Note: Trailer is Assembled and requires WOF & Registration.



BRAND NEW PRODUCT
12Month Parts only Warranty
