Coolroom Door Latch with Lock & Push Release + 2x 280mm Hinges Chrome Aluminium

Save BIG @ Save Barn with our Great Range of Hospitality & Commercial Kitchen Equipment!

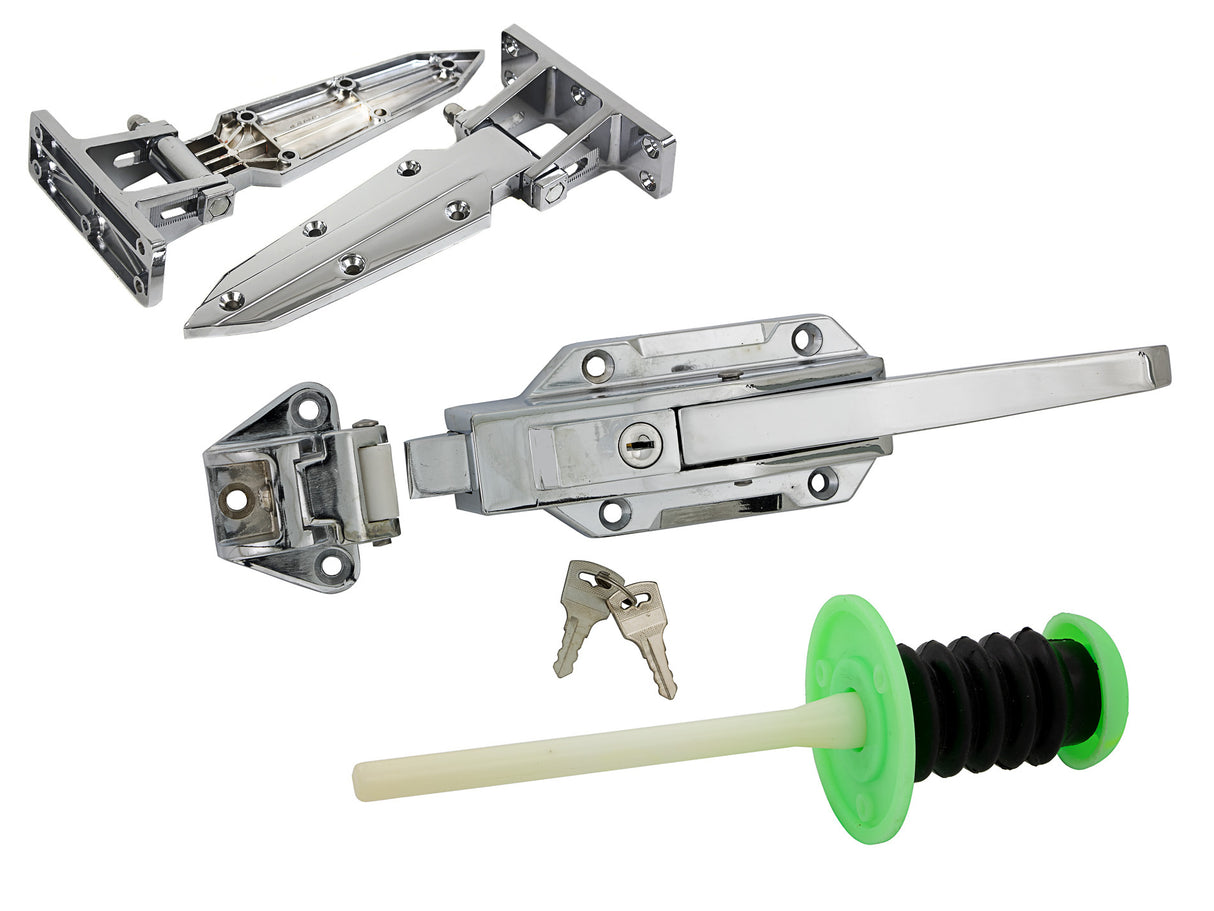

Commercial Safety Latch Set With Internal Push Rod Release and Pair of 280mm Hinges - Includes Adjustable Strike


>>> Suitable for Coolrooms or for a great looking locking door latch and Hinges on the garden or pool shed, perhaps even the beer fridge.


FEATURES:
Chrome Aluminium
Lockable Latch - 2x keys included
Weatherproof
Adjustable Strike with Roller

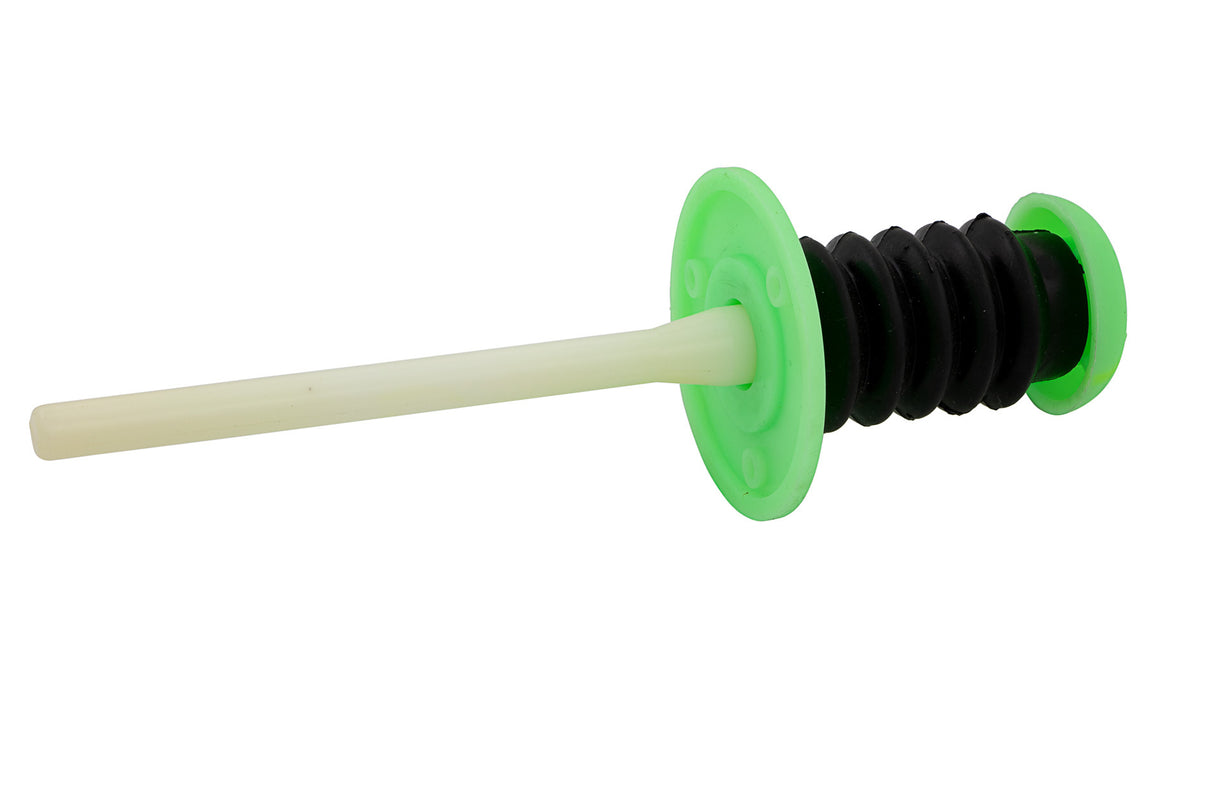

Internal Glow Push Rod Door Opener


BASIC DIMENSIONS:

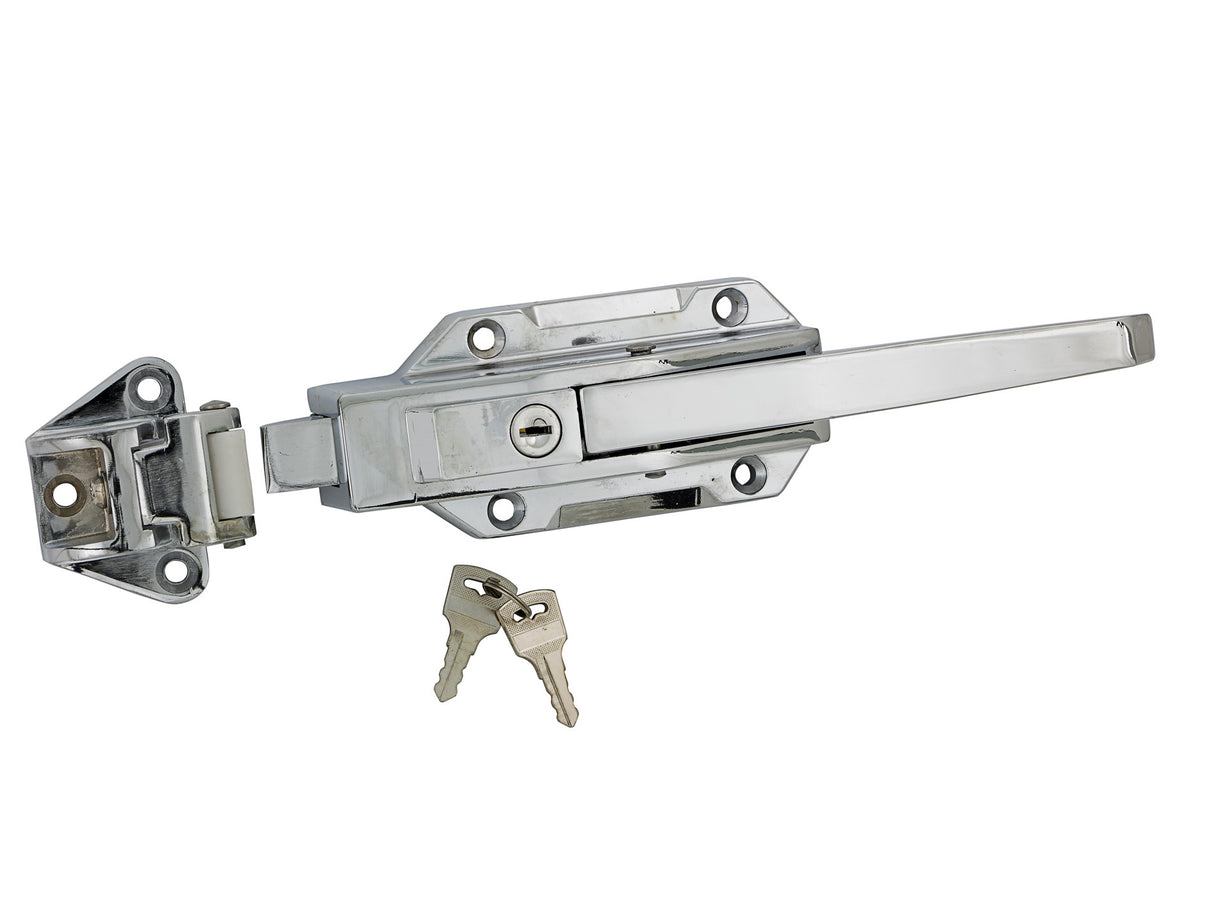

DOOR LATCH (taken as mounted):
Overall: 70mm high x 45mm deep x 260mm wide + 20mm for Safeguard Latch
Mounting Holes: 77mm long x 51mm wide (from centre to centre)

STRIKE (taken as mounted):
Overall: 45mm high x 90mm deep x 43mm wide
Mounting Holes: 55mm high x 39mm diagonal (from centre to centre)
Offset: 73mm - 100mm (approx. from rear of base)

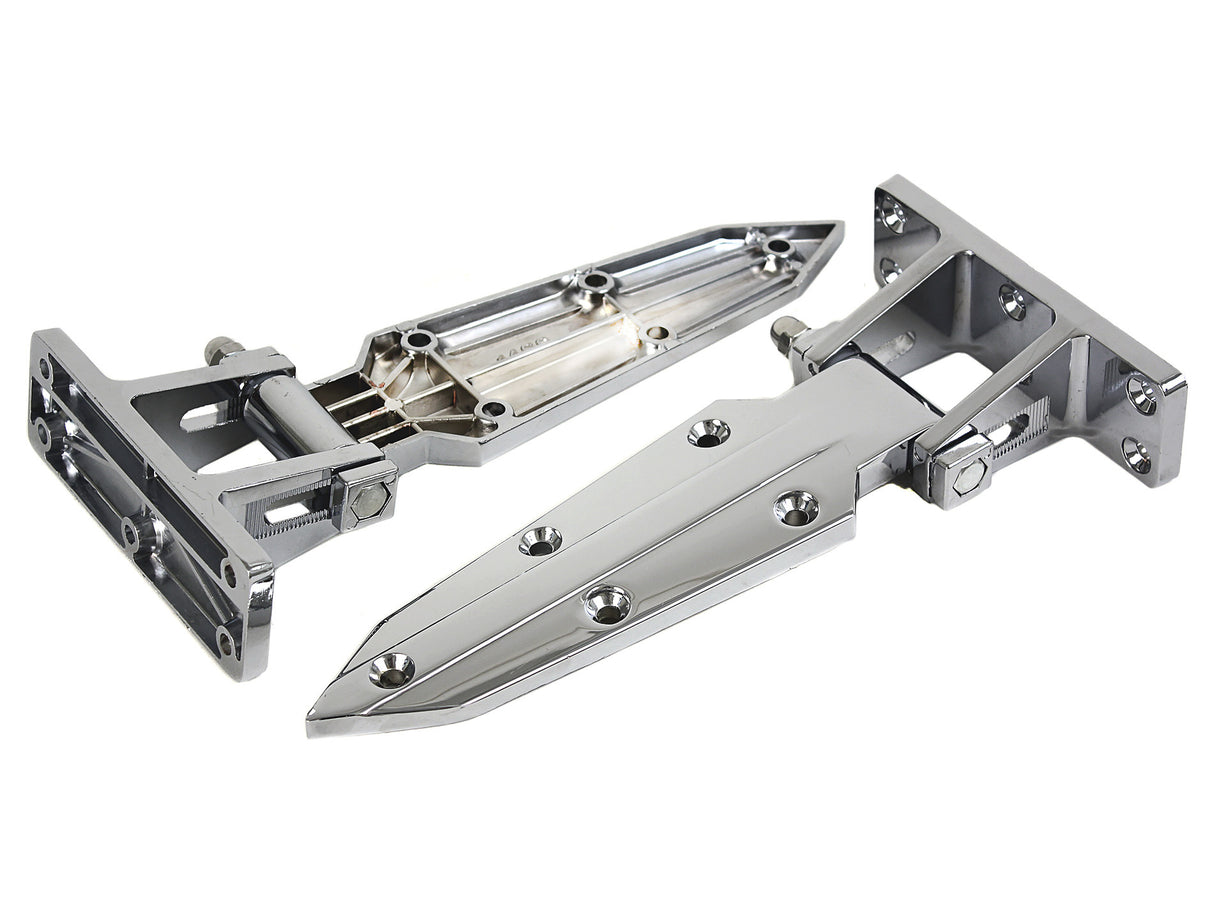

HINGES (each):
Overall (as if door closed): 280mm long
Blade / Door Mounted Side: 230mm long x 68mm wide at the widest part and 45mm wide before the pointed part
Mounting Holes: 67mm from front hole to 2nd holes and 67mm from 2nd holes to 3rd holes x 2nd holes are 35mm wide & 3rd holes are 45mm wide (from centre of holes)
Butt / Wall Mounted Side: 140mm wide x 45mm deep
Mounting Holes: 25mm x 60mm (from centre of holes)
Offset: 20mm - 60mm (approx. from rear of base)


Mounting bolts / screws not included.



BRAND NEW PRODUCT
12month Return to Base Warranty


Please Note: Deliveries are within North & South Islands only.
Please enquire for shipping costs to outlying Islands such as Waiheke or Chatham.

• Join the 240,000+ people who shop with Savebarn.
• 450,000 Positive Feedbacks and growing daily
• Over 5,000 great value products
• Gst Tax Invoice & Warranty standard
• Long-Term Finance available – please enquire
• Please view our profile page for store details & info
“SAVE BIG @ SAVE BARN”


CODE: ZCHCR-LOCK + ZCHCR-HINGE x2
Weight: 3.1kg
CBM: 0.001
Key: barn
