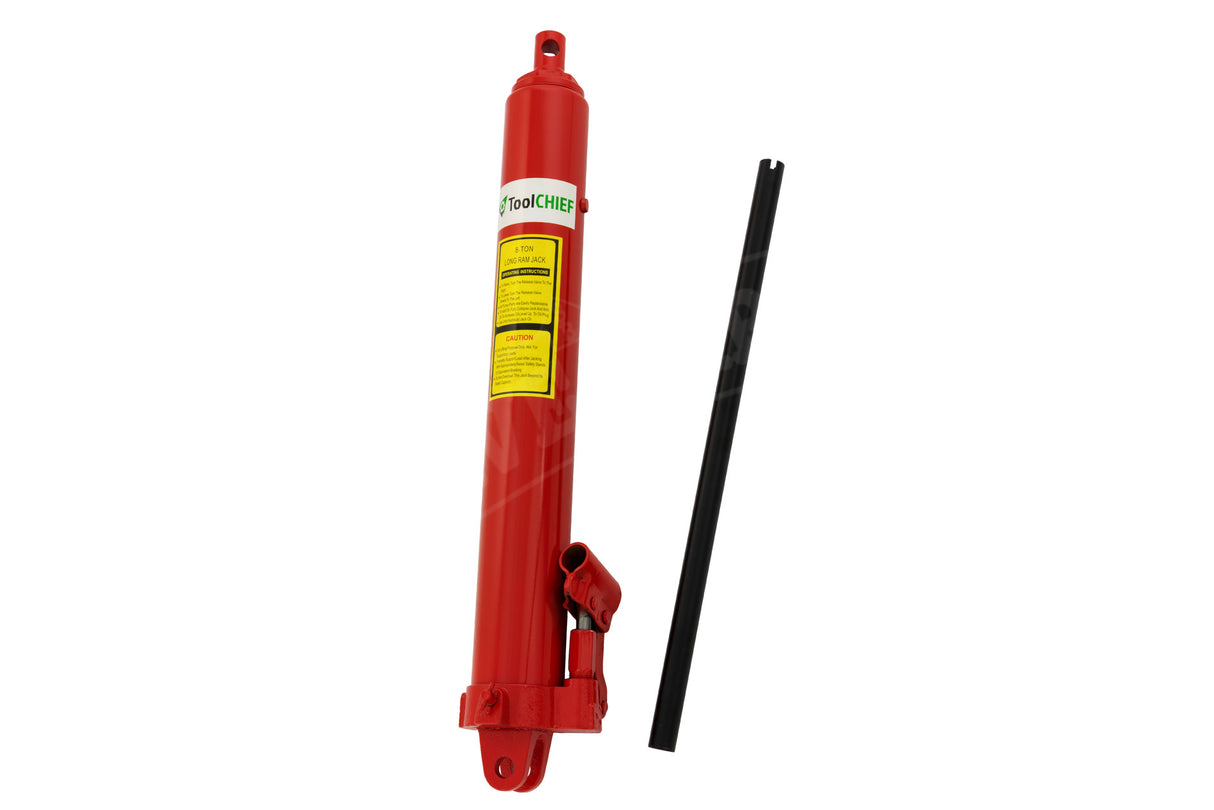

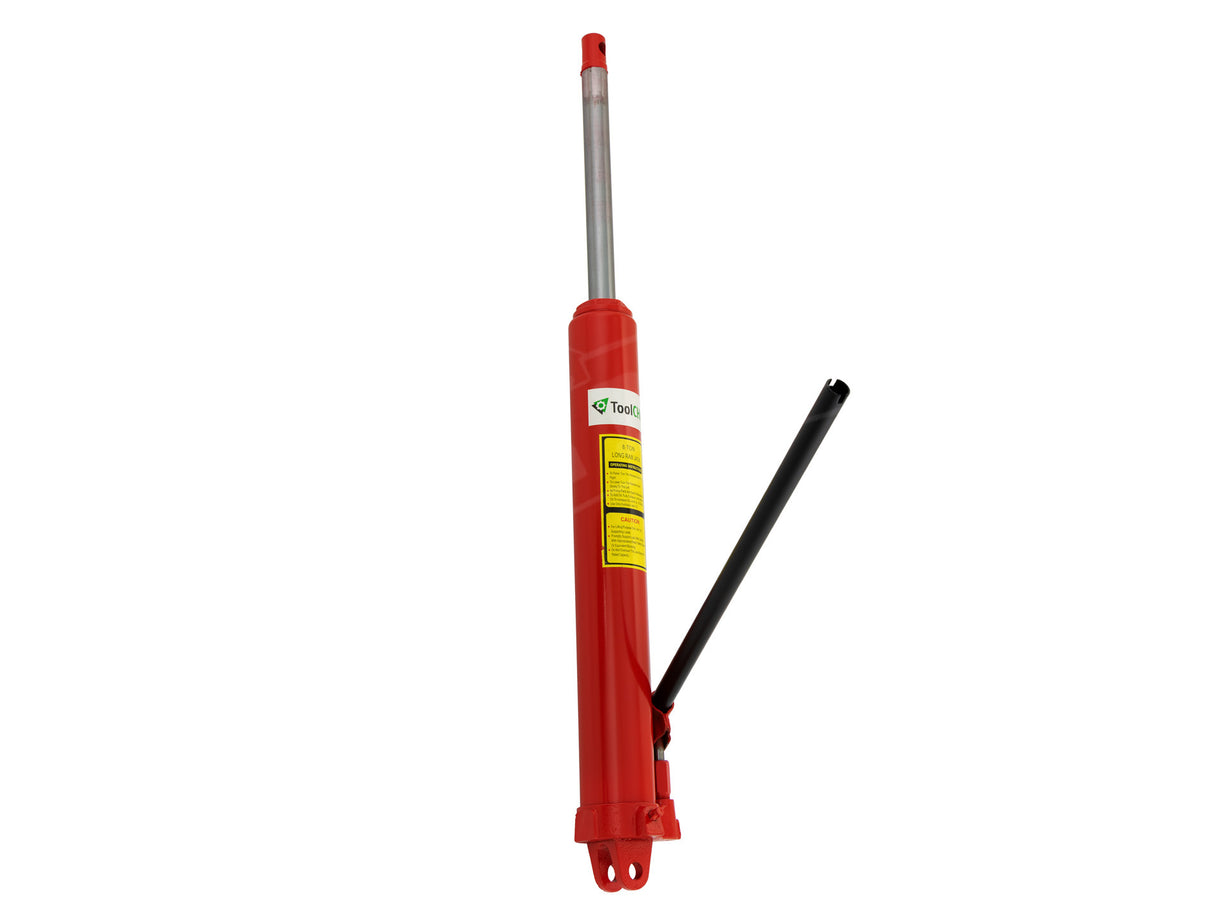

HYD 8 Ton Long Rams
TOOLCHIEF
Suitable for use with the ToolChief 2Ton Engine Crane.
BASIC DIMENSIONS:
1125mm fully Extended
- Centre of bottom mounting holes to centre of top mounting hole.
635mm fully Compressed
- Centre of bottom mounting holes to centre of top mounting hole.
Lower mounting lugs are 24mm apart (internal space) and 46mm wide overall.
30mm dia. arm with 490mm travel
80mm dia. red casing
Lug Mounting Holes: 17mm dia.
Please note this will not work upside down or horizontally.
BRAND NEW PRODUCT
12month Return to Base Warranty
Please Note: Deliveries are within North & South Islands only.
Please enquire for shipping costs to outlying Islands such as Waiheke or Chatham.
• Join the 240,000+ people who shop with Savebarn.
• 450,000 Positive Feedbacks and growing daily
• Over 5,000 great value products
• Gst Tax Invoice & Warranty standard
• Long-Term Finance available – please enquire
• Please view our profile page for store details & info
“SAVE BIG @ SAVE BARN”
CODE: JAC017
Weight: 9.7kg
CBM: 0.015 (690x150x120)
