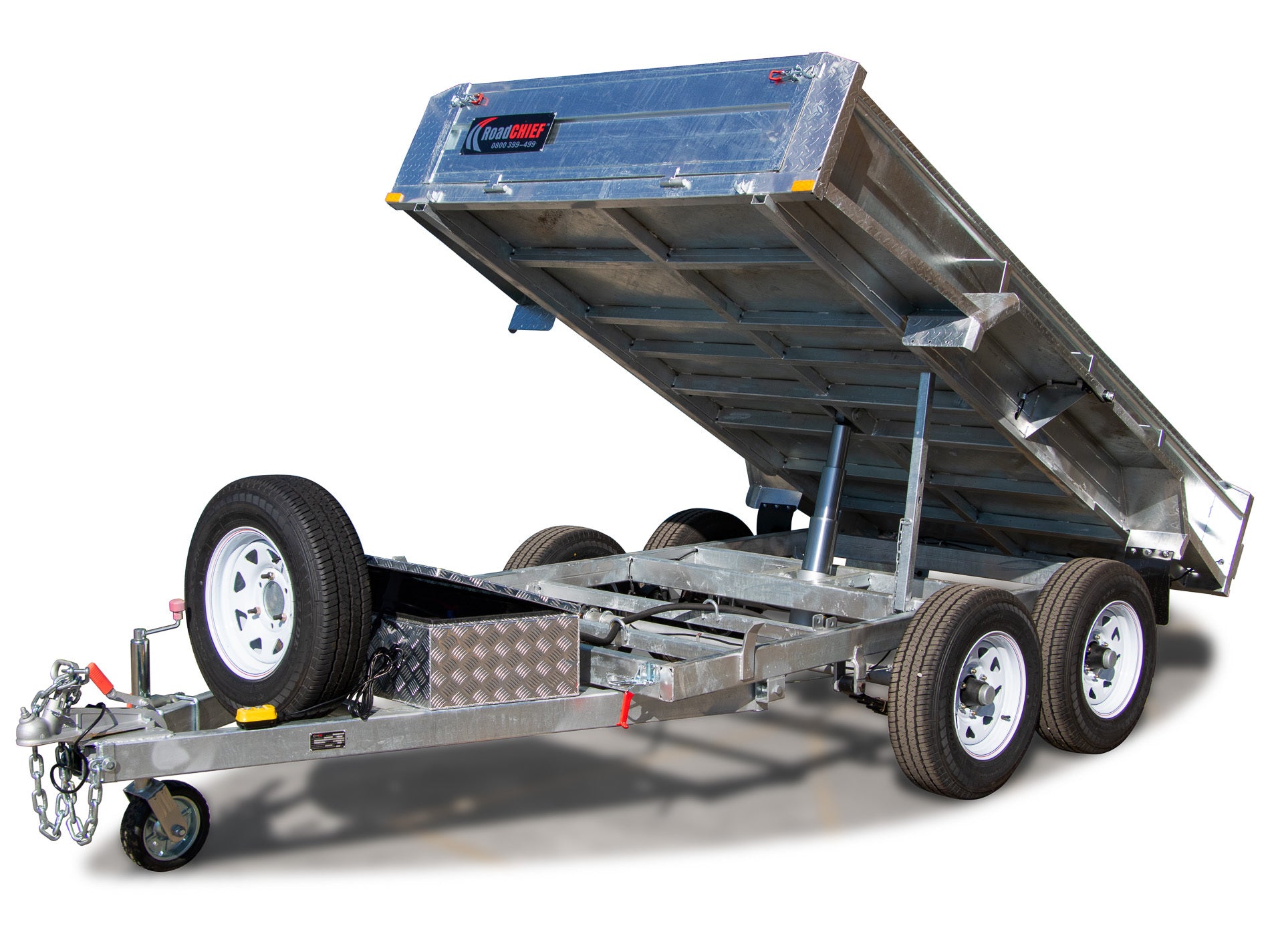

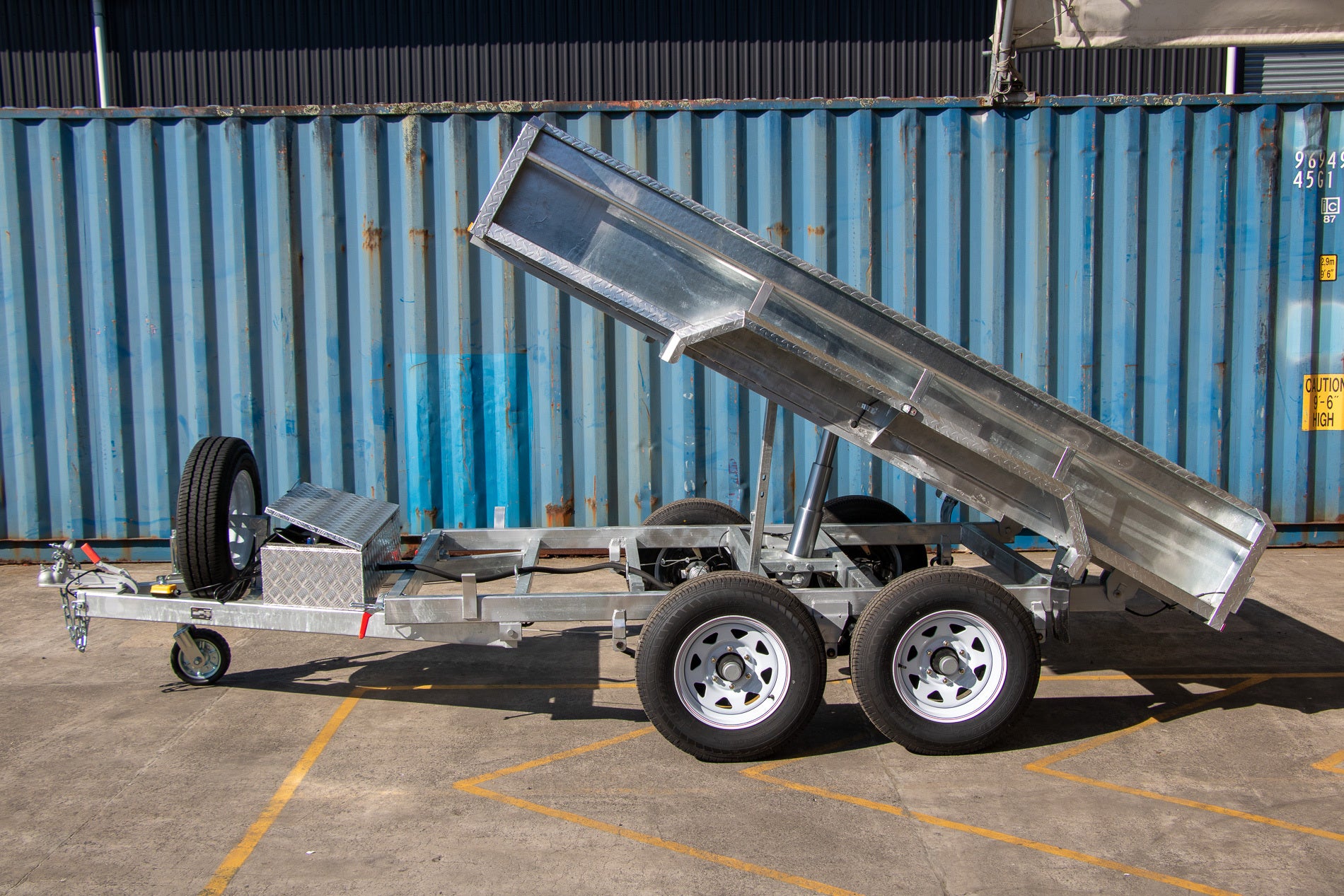

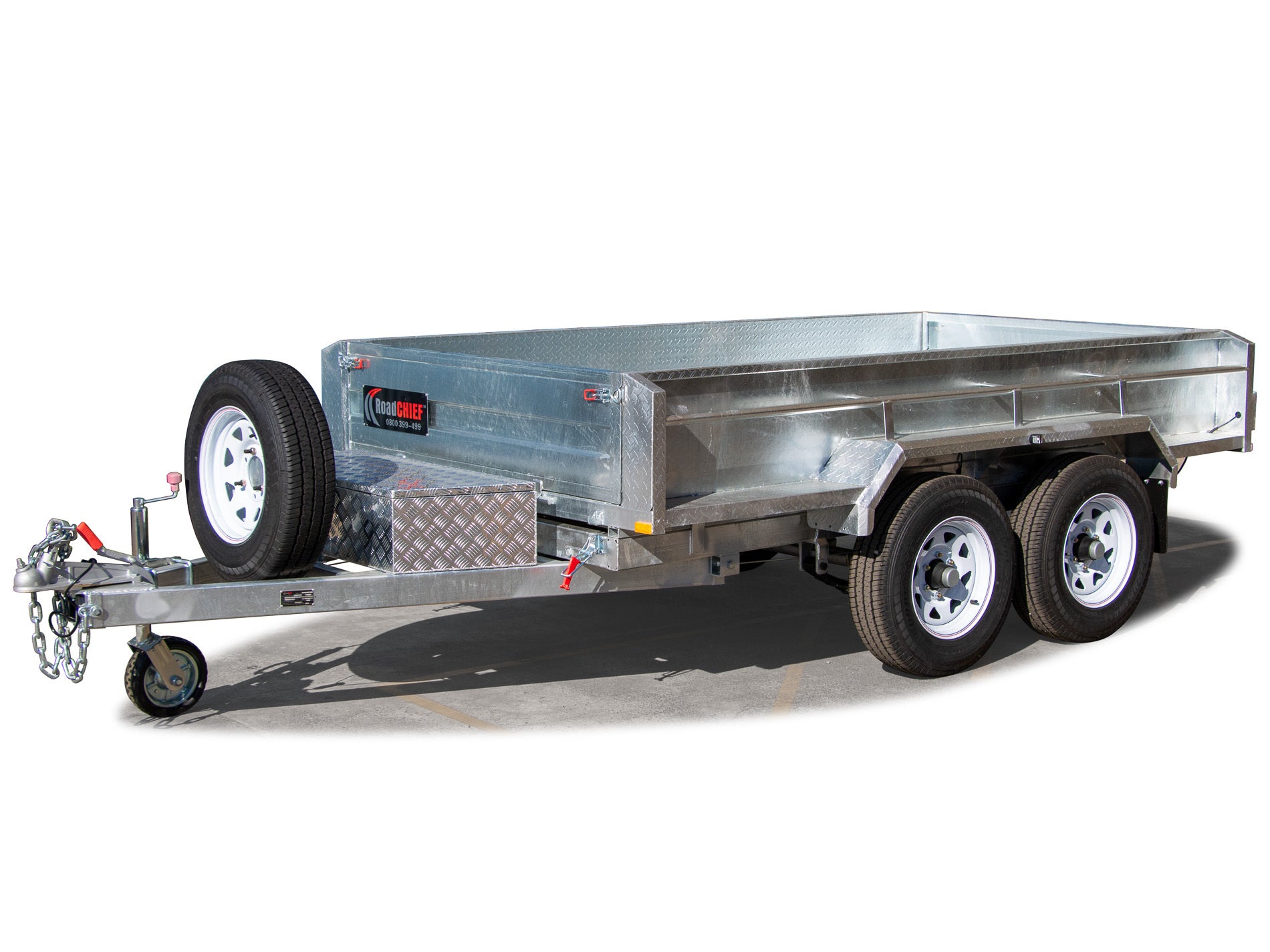

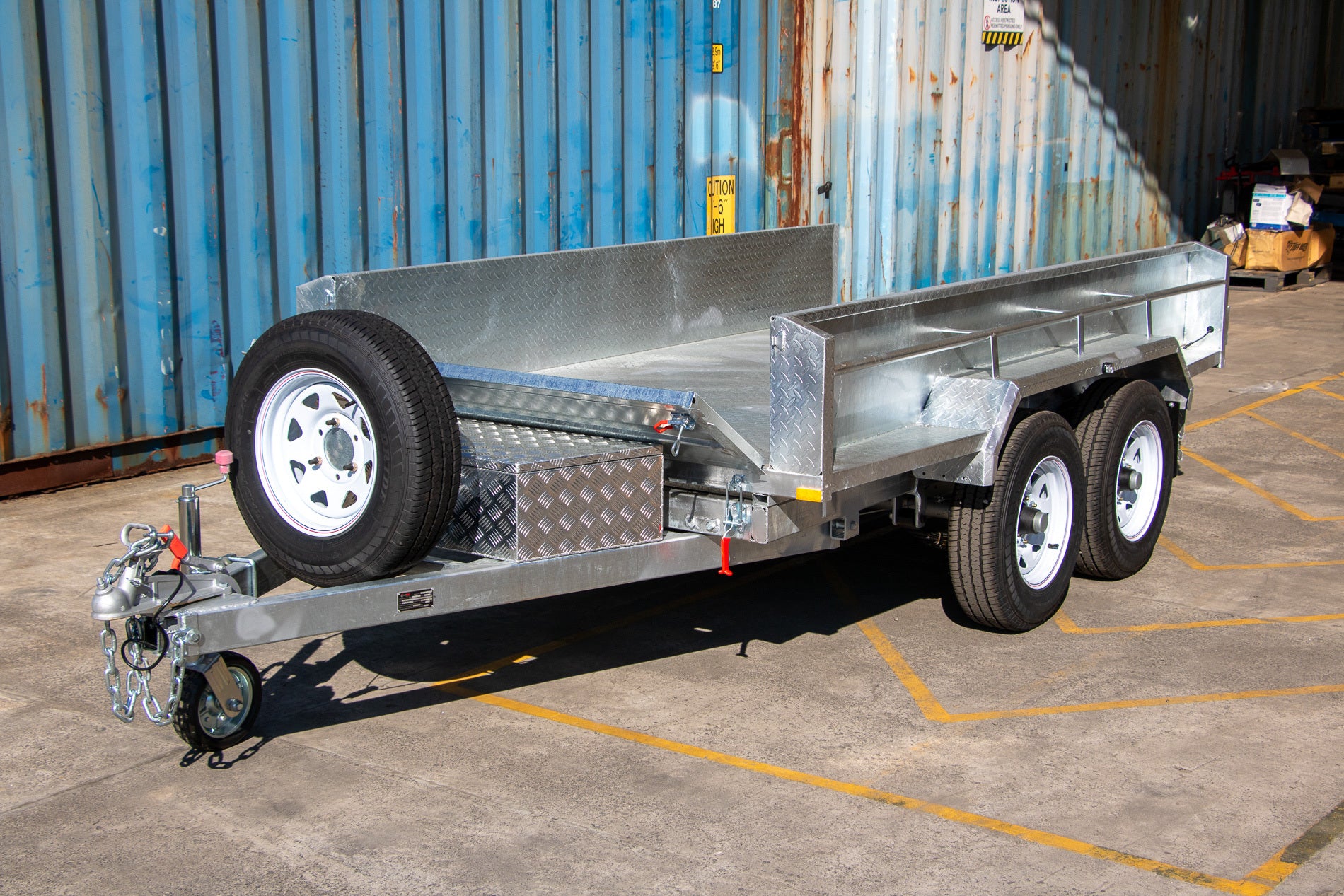

Trailer 10ft x 5ft Fully Welded Hydraulic Tipping Trailer - Tandem Axle
ROADCHIEF
LOAD CAPACITY: 2630kg
GTM: 3500kg
FULLY ASSEMBLED - Pickup from Save Barn Otahuhu.
***PRE-ORDER - STOCK DUE LATE-SEPTEMBER 2026
>>> Optional 900mm High Cage Available (not included), please enquire.
FEATURES:

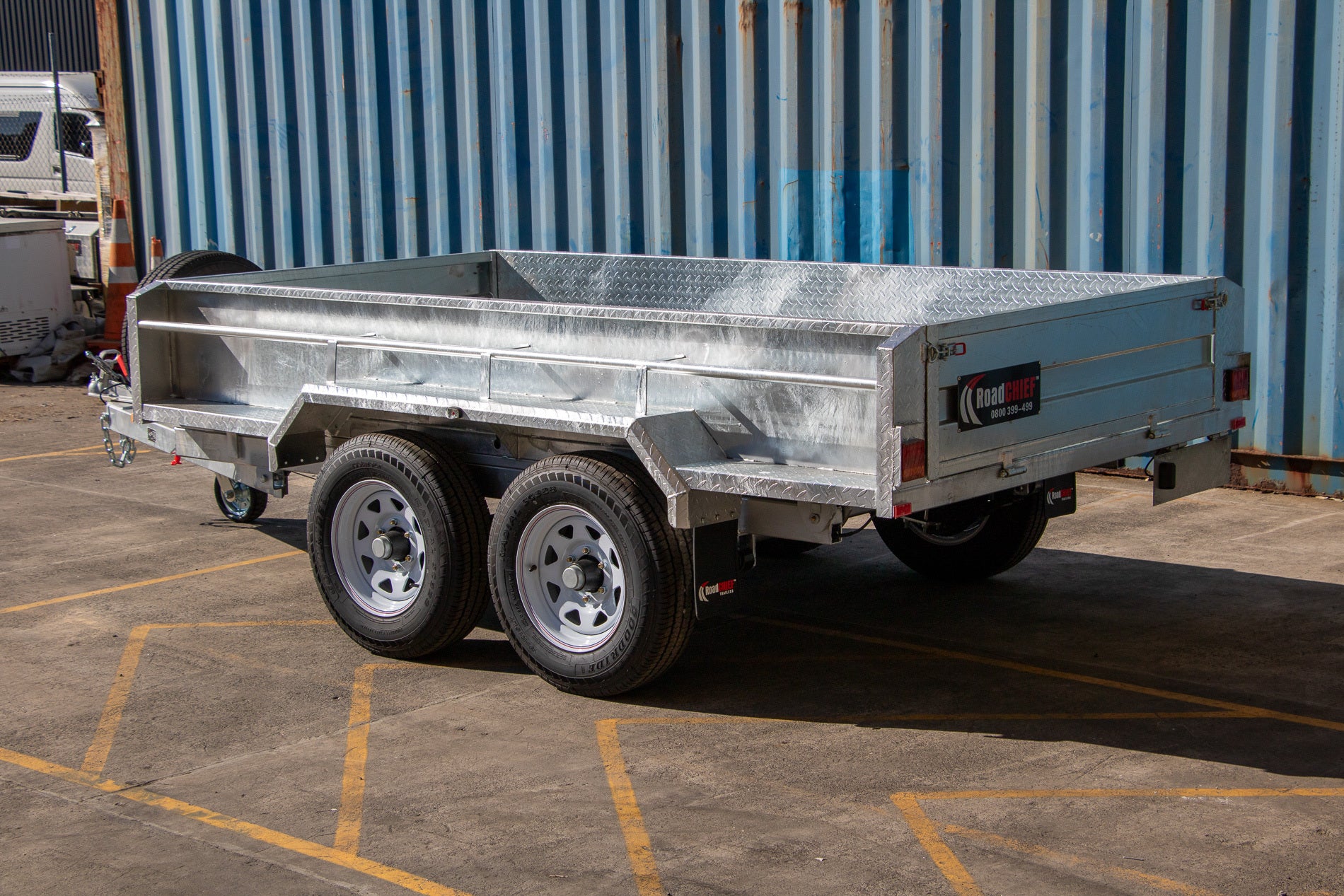

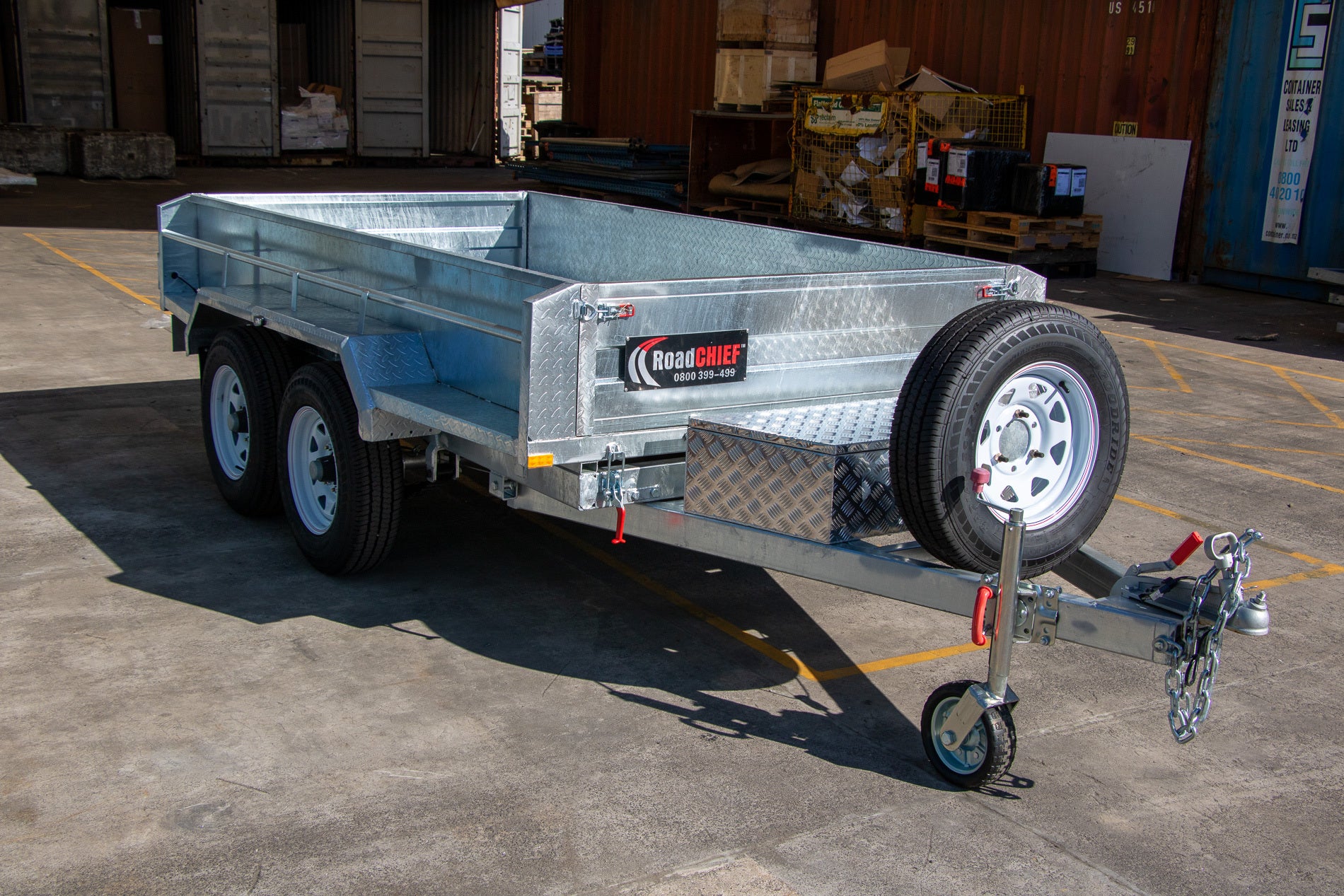

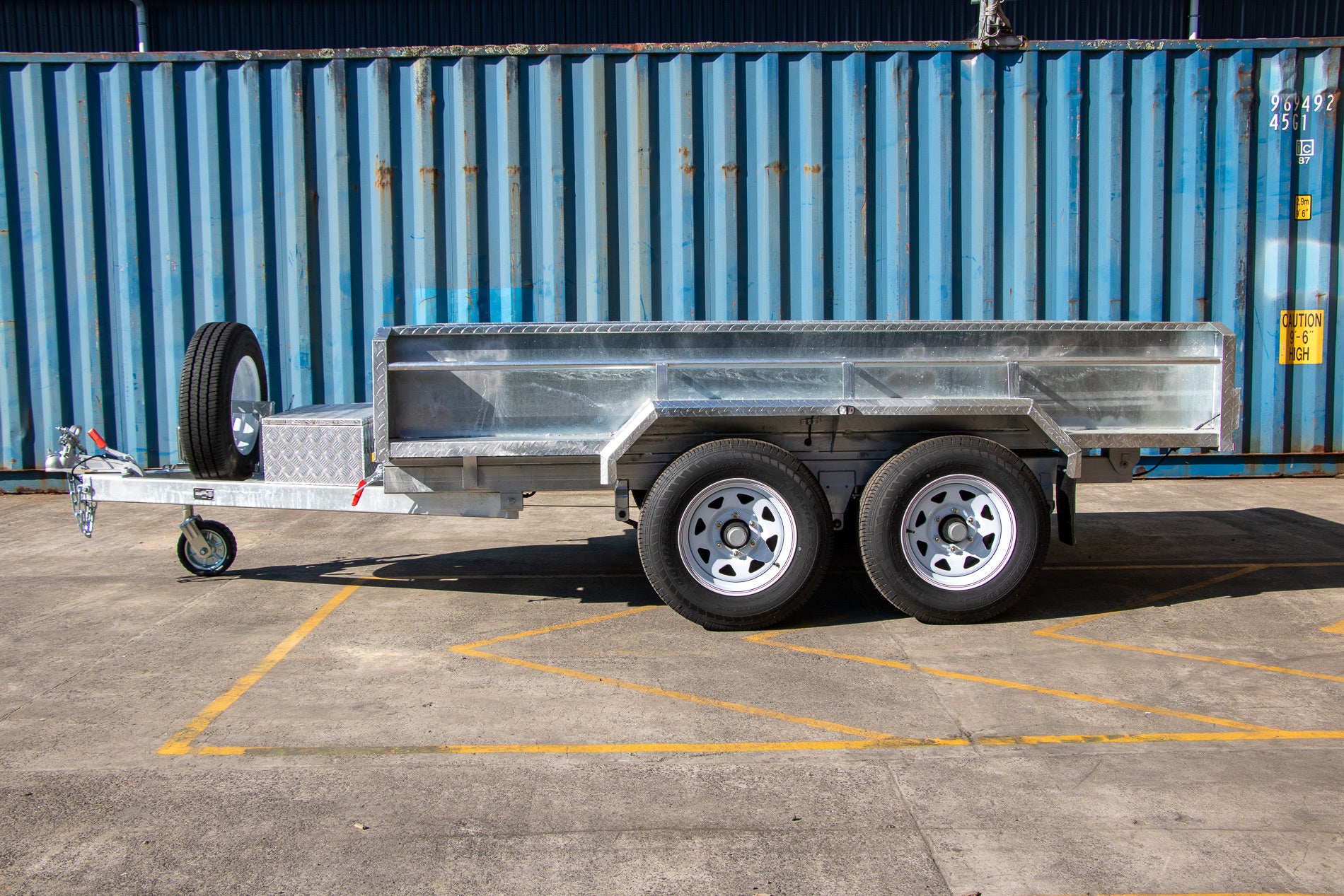

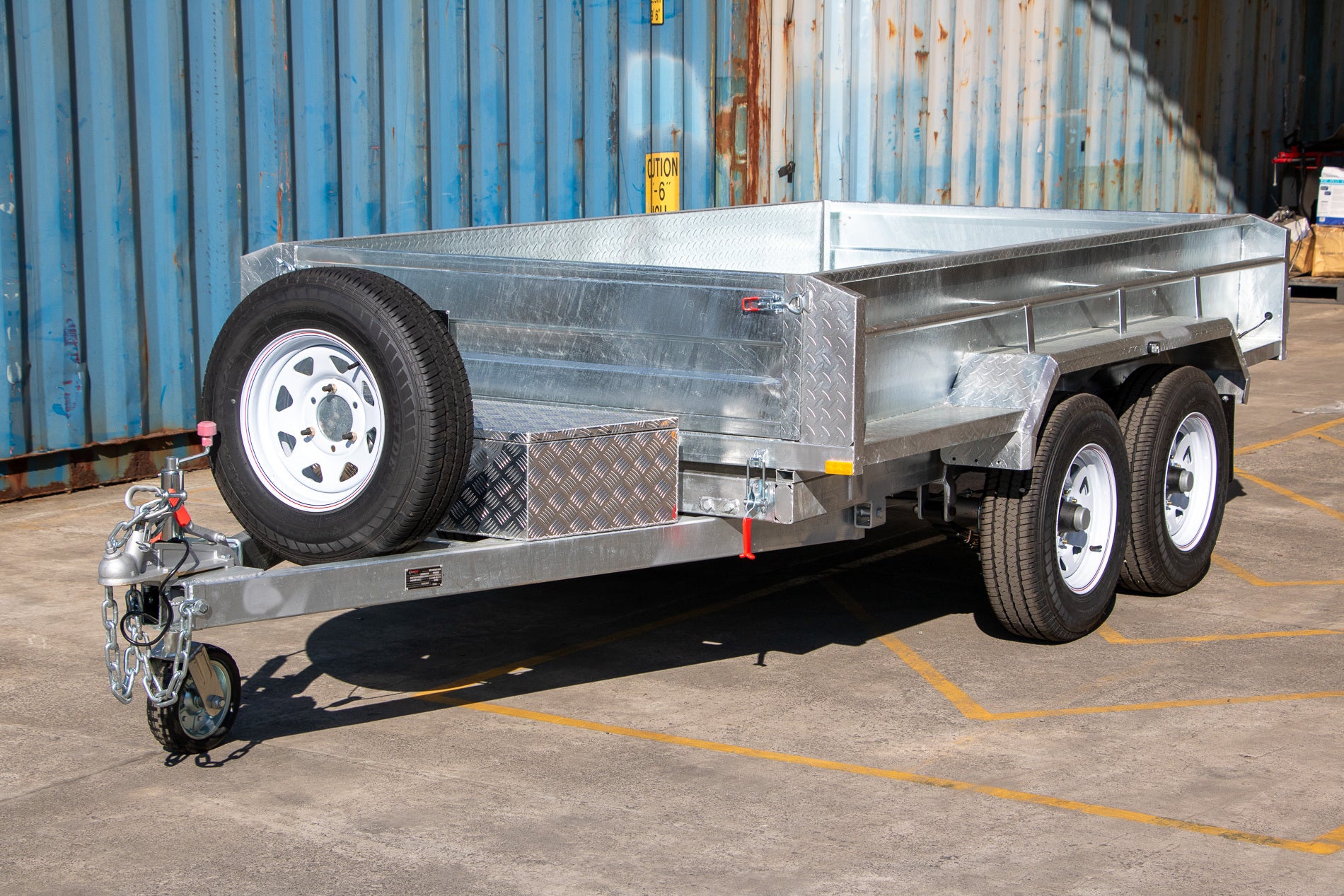

10ft x 5ft (3000mm x 1530mm) Fully Welded Tipping Trailer
Hot Dipped Galvanised (Rust Free)

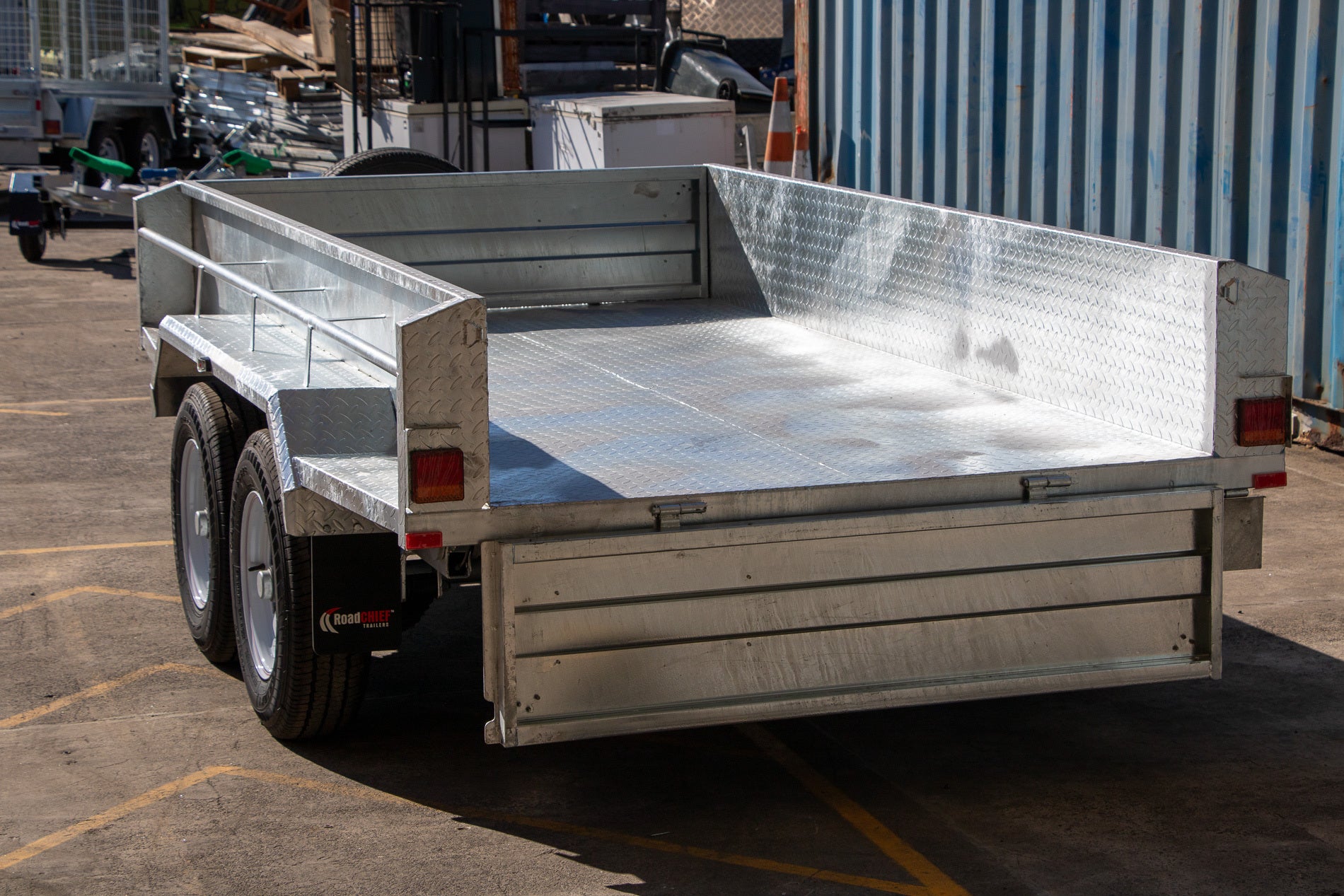

2.5mm Thickness Galvanised Checker Plate Deck

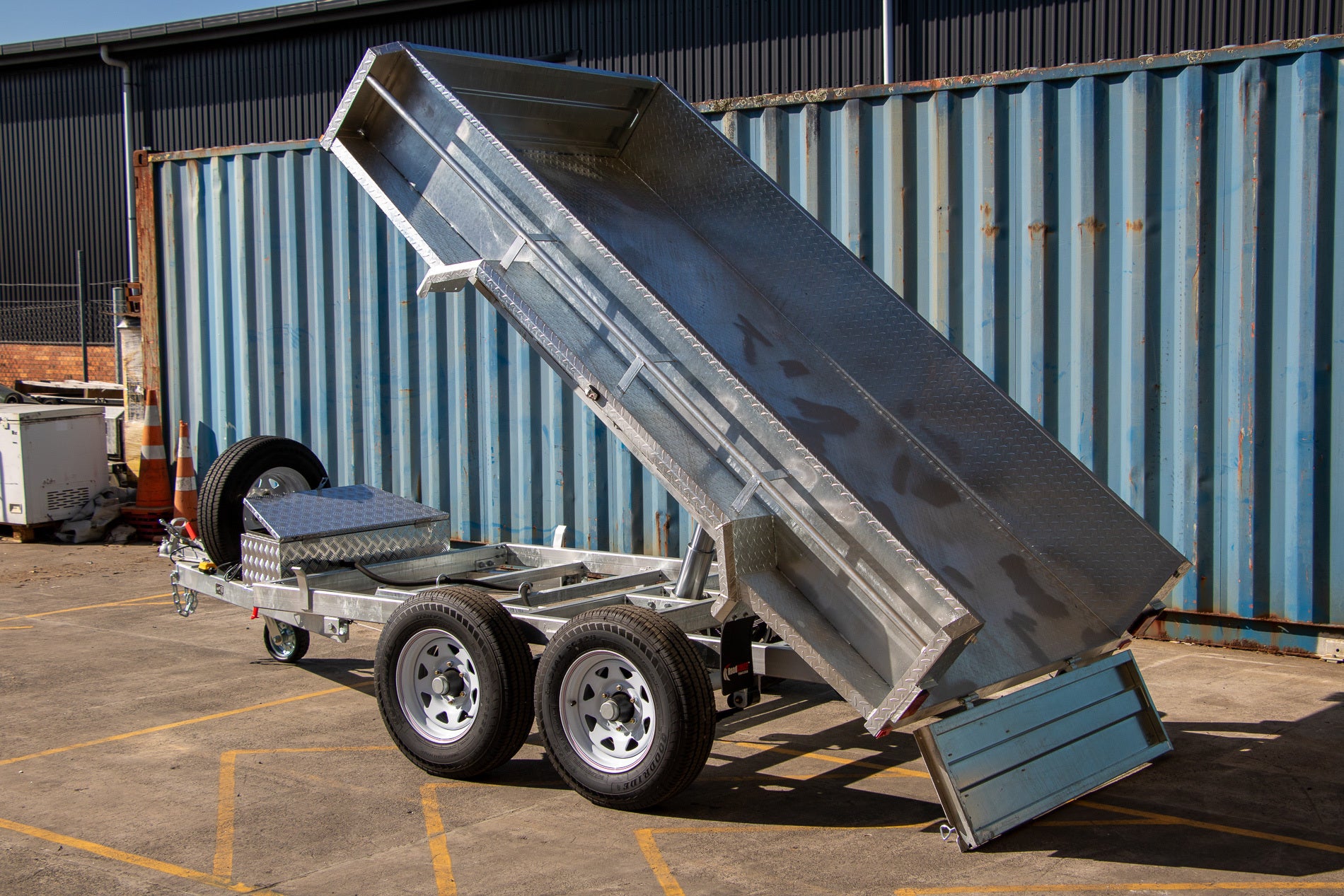

Front & Rear Drop Down Gates
400mm High Sides

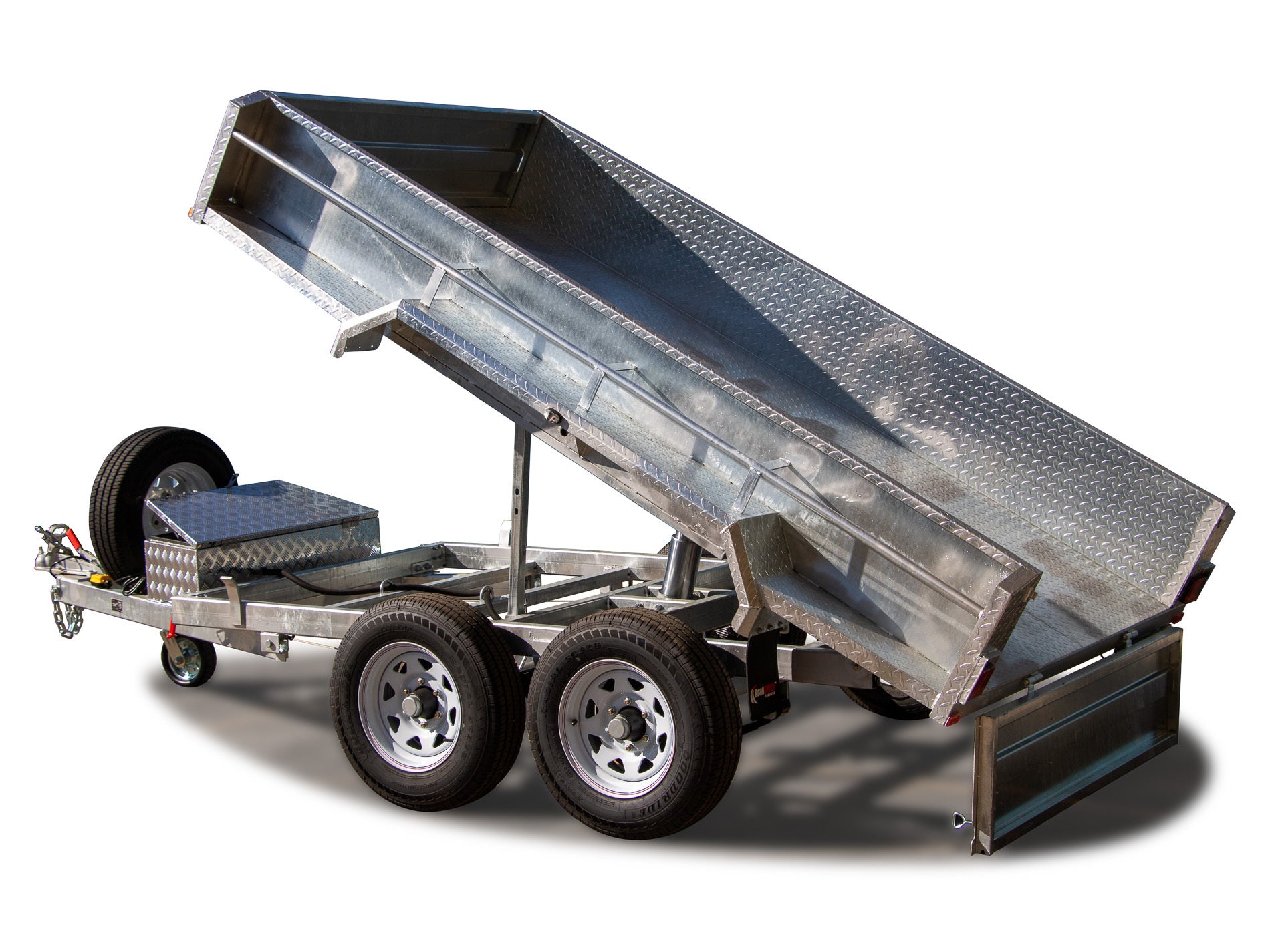

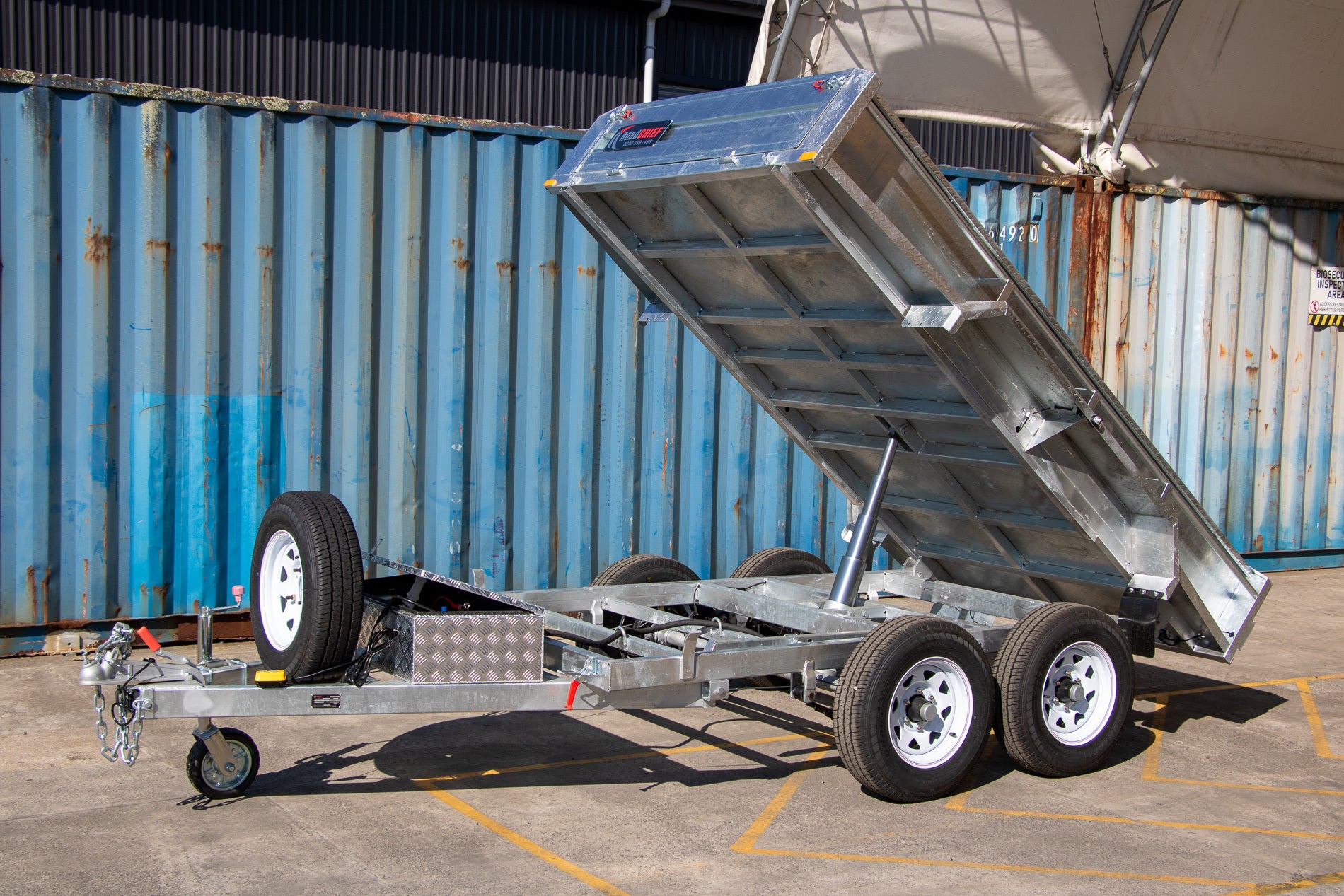

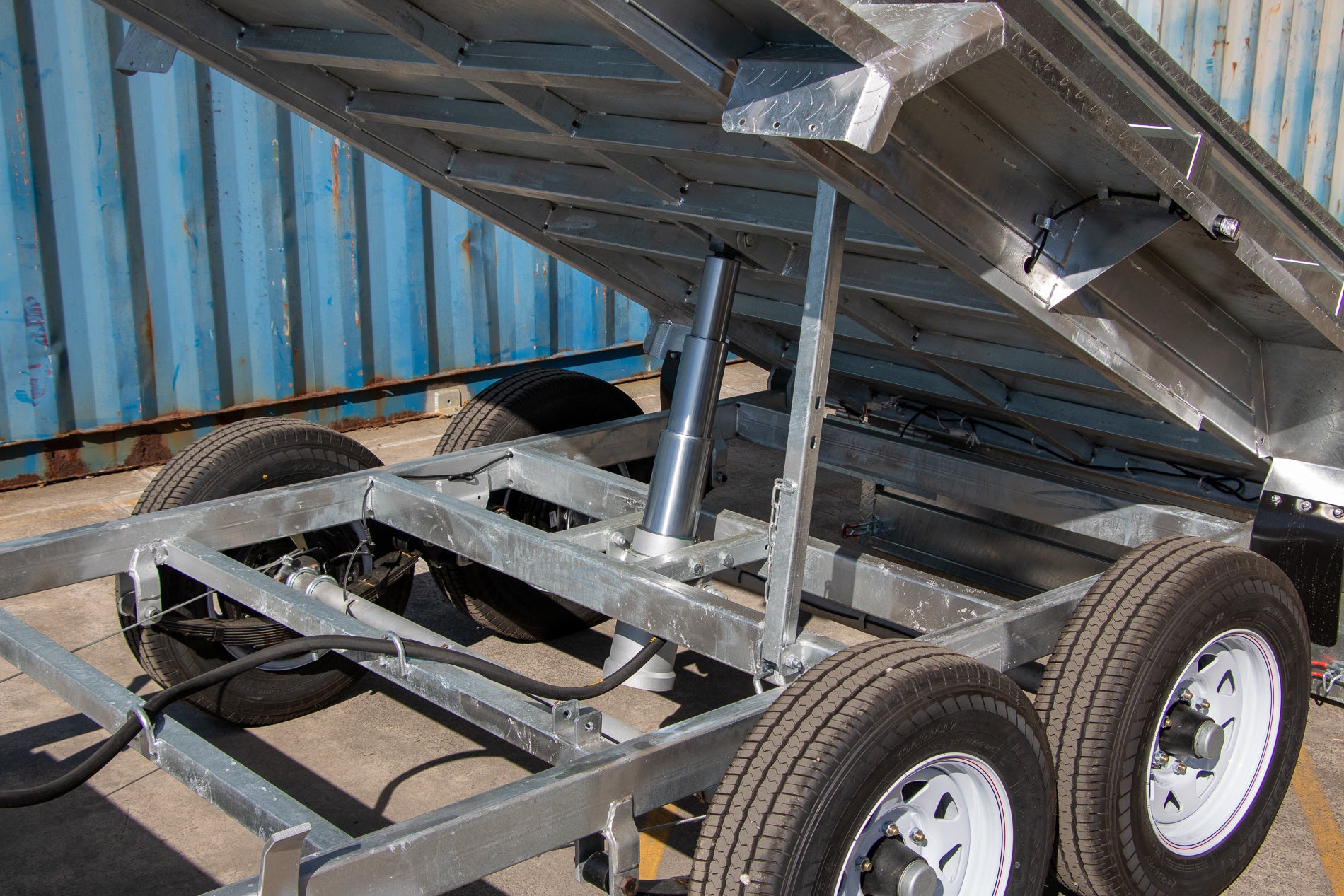

Hydraulic Ram System (4 Stage)
- Housed in Frame Mounted Toolbox (lockable)

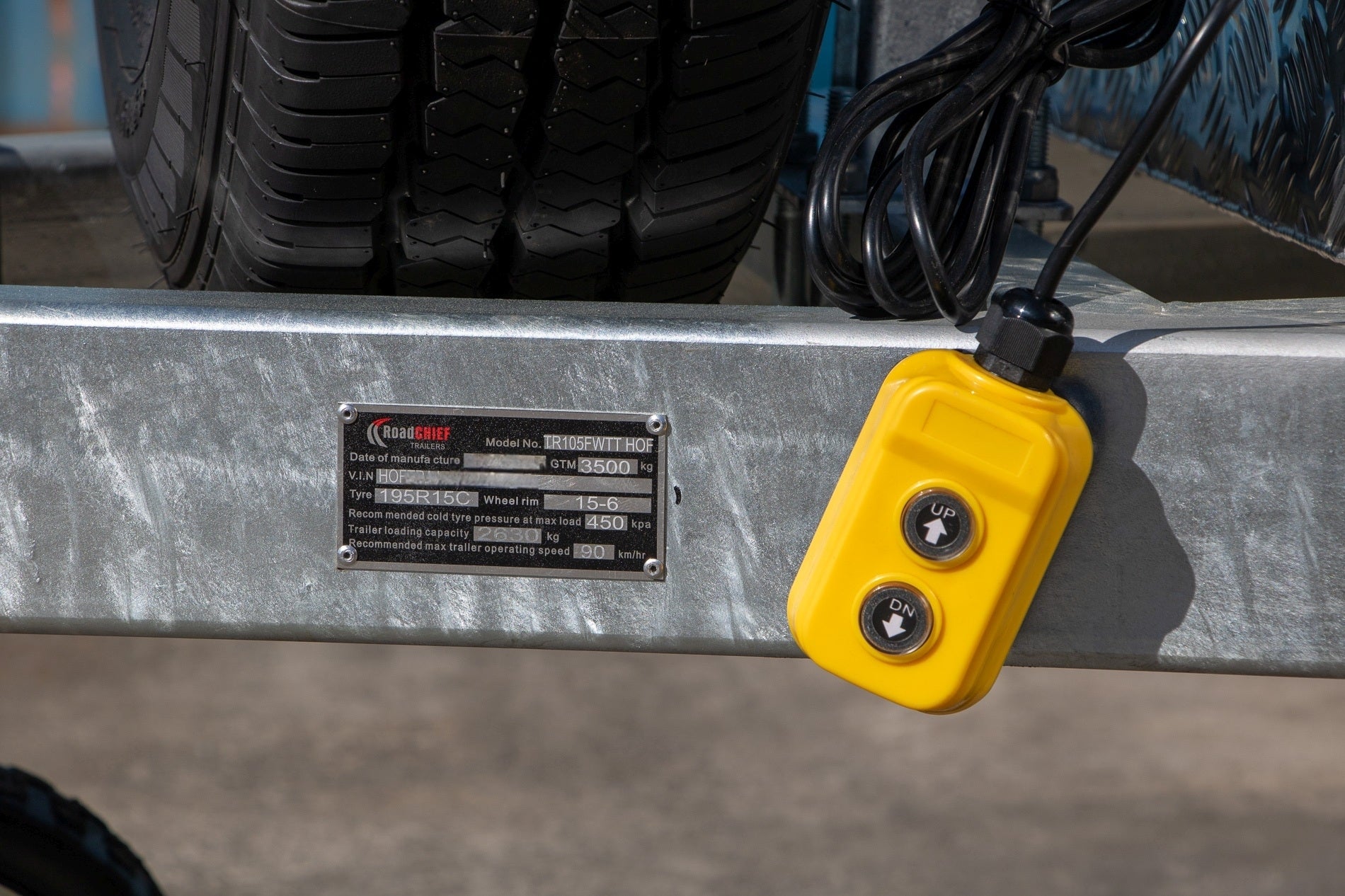

- Remote Control with Magnetic Back & 3.5m Long Cable
- 12V Battery Powered (not included)

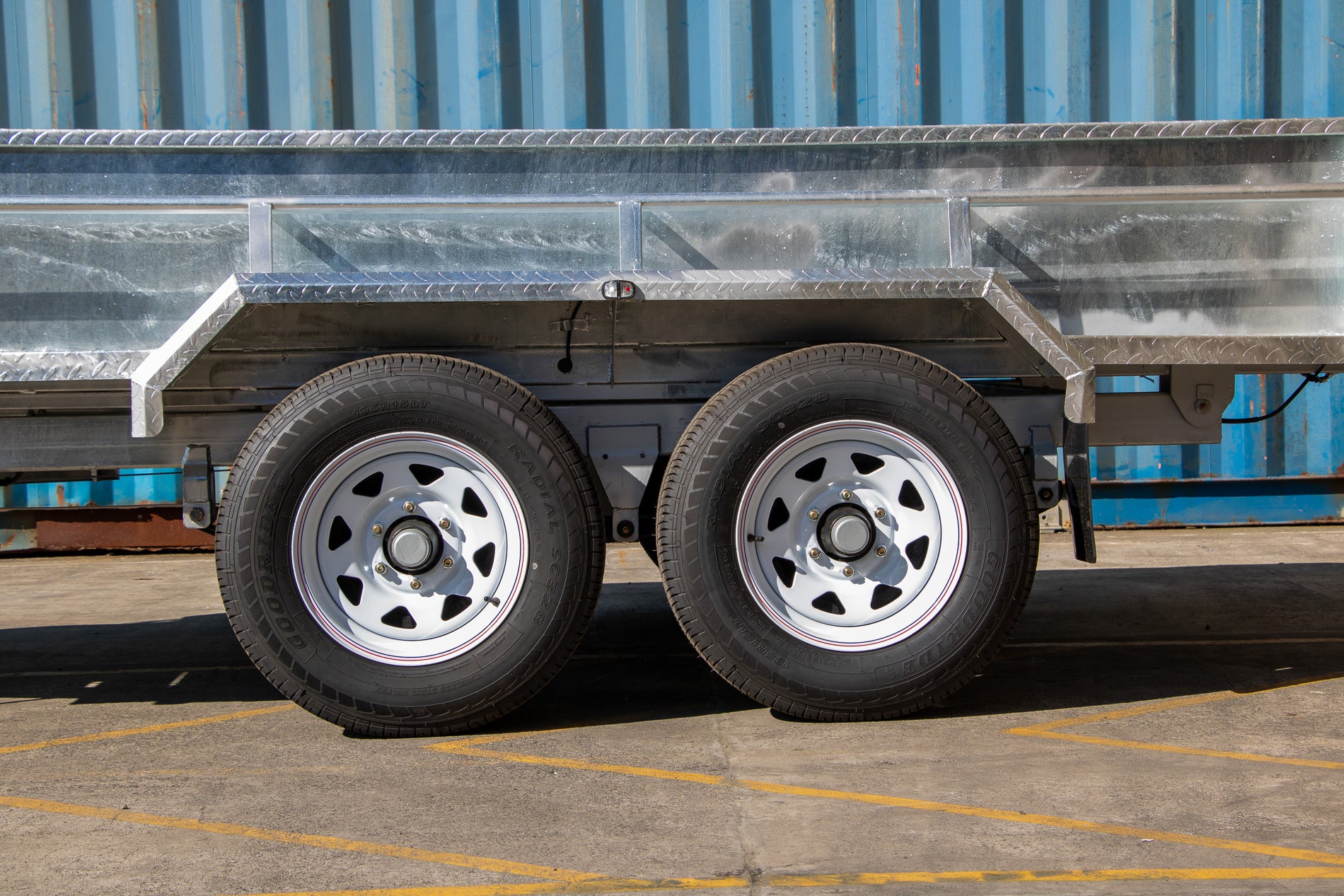

2x 60mm Round Solid Axle With Two 12 Inch Electric Brakes (Requires Brake Controller, not included)
4x 9-Leaf Rocker Roller Springs (Heavy Duty Suspension)
4x New 15" Rims with 195R15LT Tyres (6 Stud) + 1x Spare Wheel
3x Additional Support Beams & Crossmembers in the A Frame
LED Tail Lights
1-7/8 Coupler
- 3500kg Rated

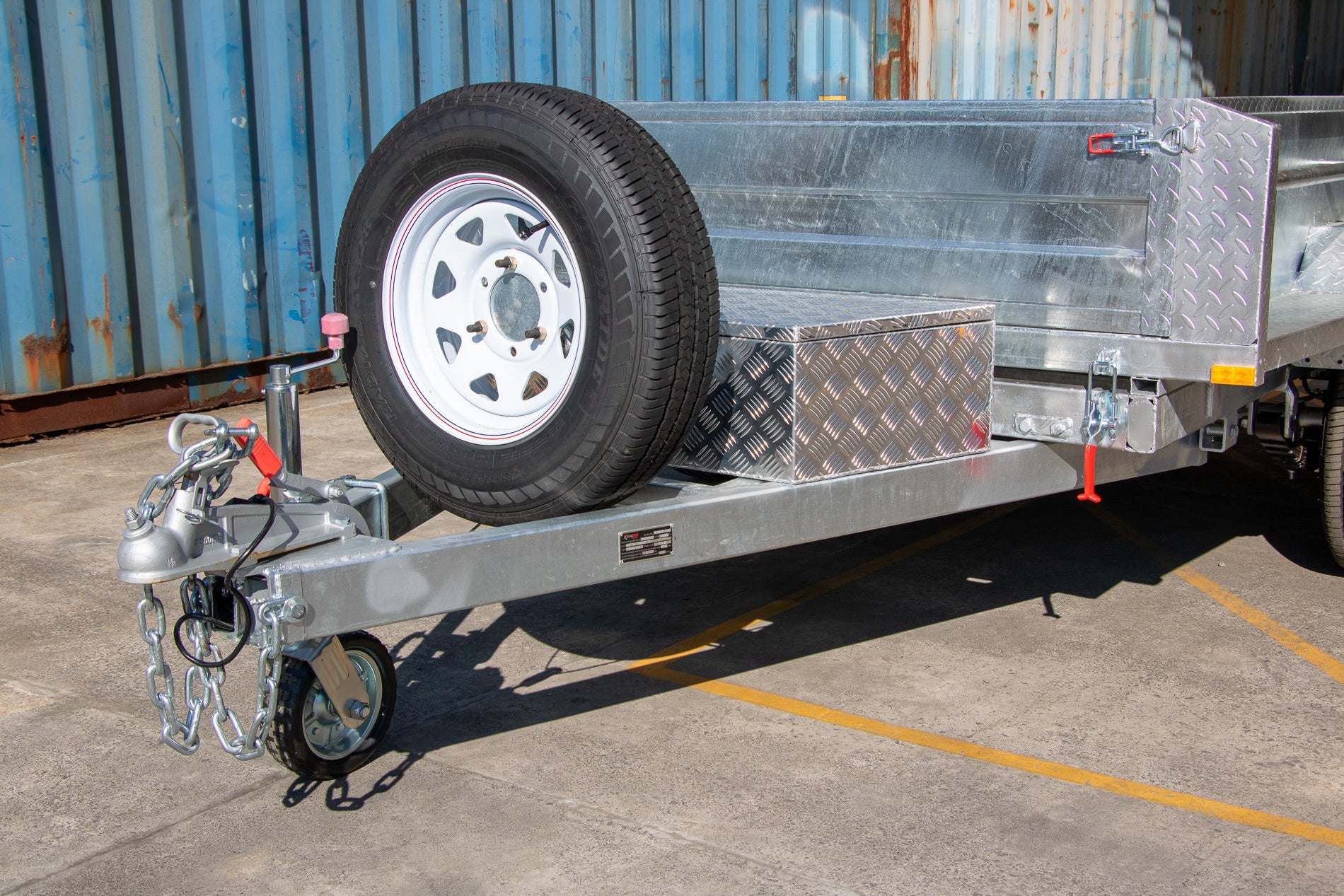

Free Swing up 10" Jockey Wheel
Flat 7 Pin Plug
Heavy Duty Chain & Load Rated Shackle
BASIC DIMENSIONS:
Overall: 4600mm long x 1870mm wide x 1100mm high
Deck: 3000mm long x 1530mm wide x 400mm high sides

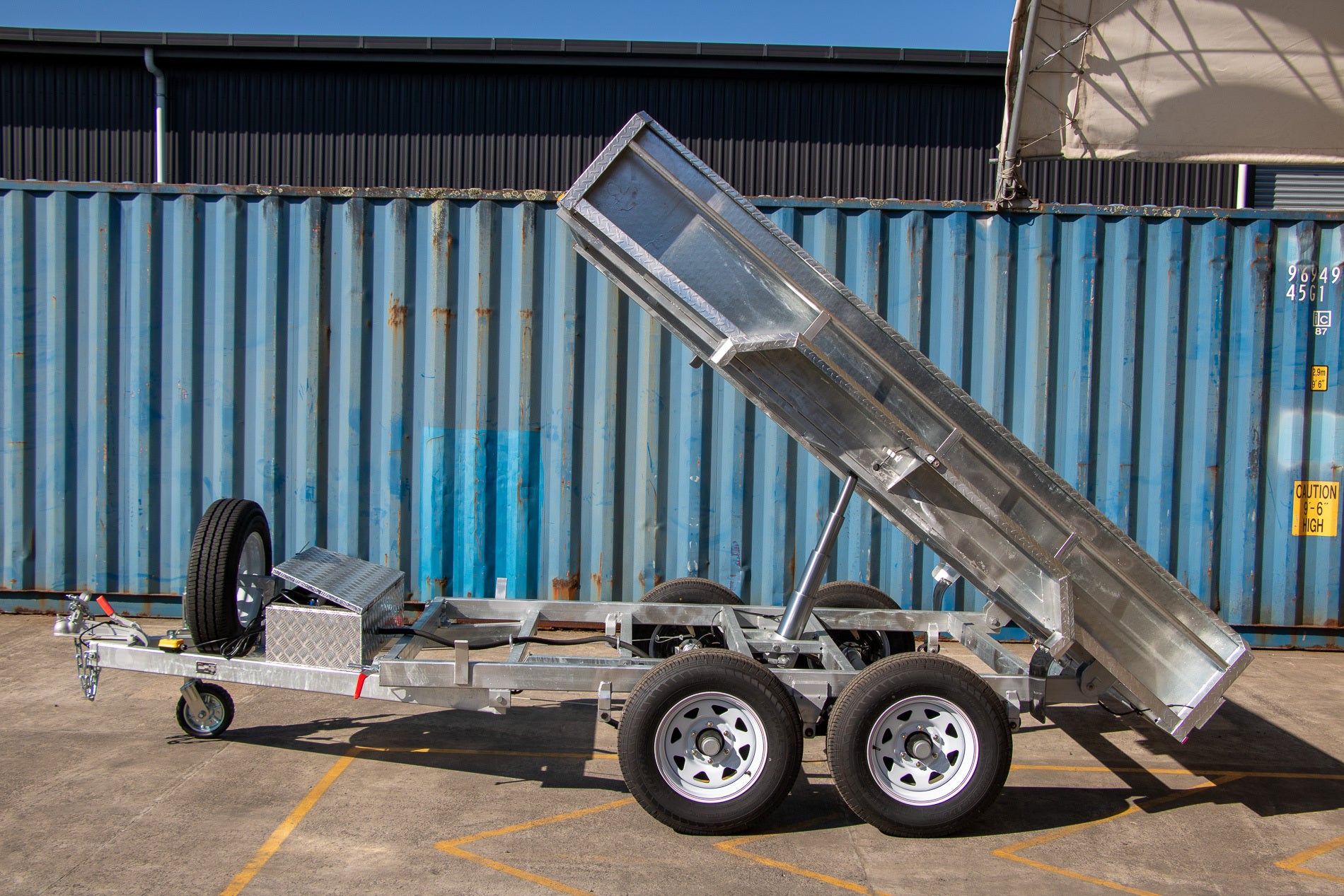

Deck Raised: 2700mm high fully extended / 2350mm high on stay
Draw Bar: 1500mm long (100mm x 50mm box steel)
Toolbox (for hydraulic system): 1030mm wide x 420mm deep x 260mm high
Note: Trailer is Assembled and requires WOF & Registration.
BRAND NEW PRODUCT
12Month Parts only Warranty
