Save Barn  |  SKU: TRJW3 + TRJWB01

350kg Trailer Jockey Wheel 140mm - Swivel + 75mm x 80mm 'U' Bolt Kit

$84.00 NZD
Exc GST: $73.04

Shipping and Delivery

We ship most products nationwide and offer click and collect from our Auckland store. Shipping rates are calculated at checkout. If the combination of products you've chosen can't be shipped in the usual way, a shipping quote may be required.

Returns & Exchanges

Not quite right? If your item arrives damaged, faulty, or isn't what you ordered, just get in touch with our team - all returns need to be arranged with us first, within 7 days of delivery.

Faulty items are repaired, replaced, or refunded at no cost.

Changed your mind? We may accept a return at our discretion, but a handling fee of up to 20% applies, and delivery, service, and assembly costs aren't refundable.

For full details, please see our Returns Policy.

Save BIG @ Save Barn with our Great Range of Trailers and Trailer Accessories!

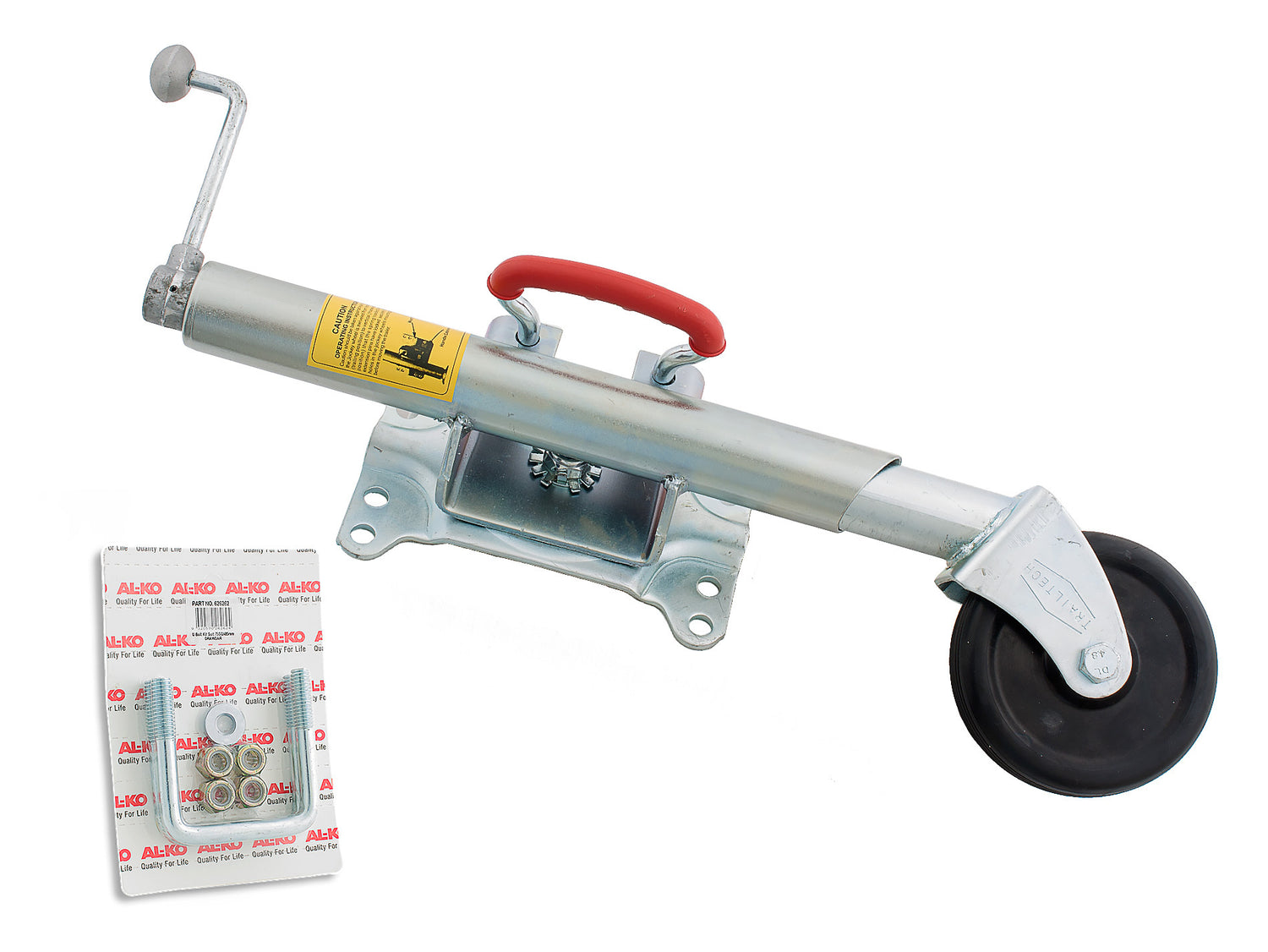

Heavy Duty Large Locking Pin Swivel Bracket Trailer / Caravan Jockey Wheel with 75mm x 80mm "U" Bolt Mounting Kit
TRAILTECH / AL-KO


Heavy duty swivel type jockey wheel suitable for trailers and caravans.

Includes 75mm x 85mm 'U' Bolt Kit to secure Jockey Wheel.


FEATURES:
Corrosion Resistant Zinc Plated Steel Construction Jockey Wheel
Solid Rubber Jockey Wheel
Large Locking Pin Swivel Bracket
Static Load Rating: Approx. 350kg
Max Load Rating 350kg
Includes 75mm x 85mm 'U' Bolt Kit


BASIC DIMENSIONS:
Overall: 580mm long x 150mm wide x 130mm high
Wheel extends from 180mm to 560mm long as measured from centre of the swivel bracket to the top of the wheel
Wheel: 140mm dia x 44mm wide.
Mounting Holes (centre to centre): 185mm x 60mm between inner holes / 110mm between outer holes / 90mm between inner and outer holes



BRAND NEW PRODUCT
12month Return to Base Warranty


Please Note: Deliveries are within North & South Islands only.
Please enquire for shipping costs to outlying Islands such as Waiheke or Chatham.

• Join the 240,000+ people who shop with Savebarn.
• 450,000 Positive Feedbacks and growing daily
• Over 5,000 great value products
• Gst Tax Invoice & Warranty standard
• Long-Term Finance available – please enquire
• Please view our profile page for store details & info
“SAVE BIG @ SAVE BARN”


CODE: TRJW3 + TRJWB01
Weight: 6.5kg
CBM: .02
