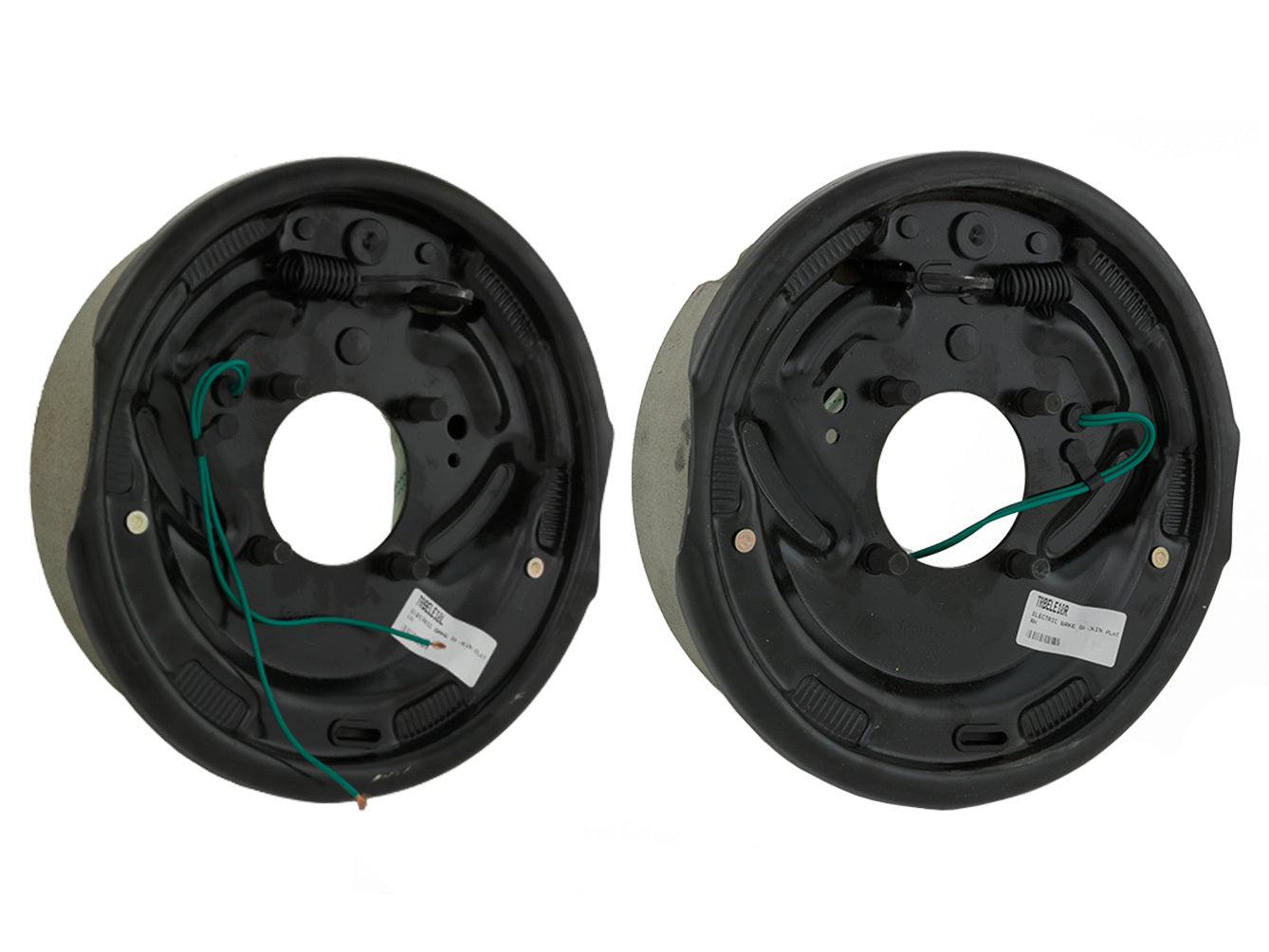

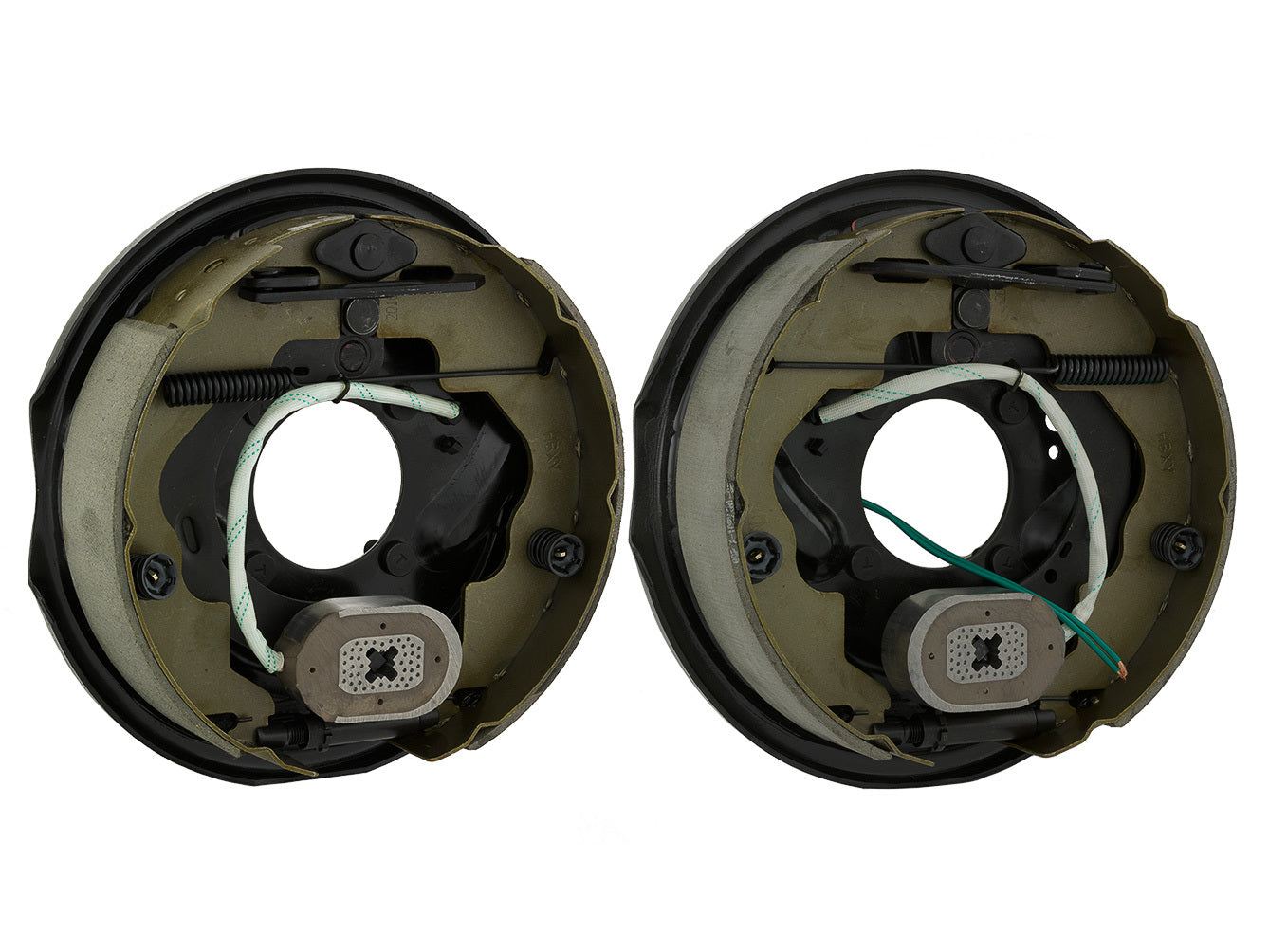

Pair of Trailer 10" Left Hand & Right Hand Electric Drum Brake Backing Plate Assemblies - with Parking Brake
Trail Tech
Ideal for replacing current worn or broken electric drum brakes or as part of an upgrade to brakes on a trailer.
>>> Listing is for 1x 10 Inch Left Hand & 1x 10 Inch Right Hand Electric Drum Brake Backing Plate Assemblies.
Electric drum brakes are an extremely efficient and reliable braking system that require minimum maintenance.
They provide smooth efficient braking when operated by a vehicle mounted controller, which also provides the ability for the driver to manually apply the trailer brakes independent of the tow vehicle braking system.
When used on trailers over 2000 kg gross trailer mass (GTM) this can be activated in a break away situation to conform with the Australian Design Rule requirements.
FEATURES:
10 Inch
Includes Parking Brake
Includes Brake Shoes
Recommended Max. Load on 13" / 14" Wheels: 700kg each wheel
Recommended Max. Load on 15" / 16" Wheels: 600kg each wheel
BASIC DIMENSIONS:
Overall: 285mm diameter x 80mm deep
Overall of Fitted Brake Shoes: 255mm diameter
Centre Bore: 75mm diameter
Mounting Bolts: 70mm x 70mm (centre to centre of each bolt)
BRAND NEW PRODUCT
